Quinta - Recessed spotlights - Indoor

Quinta

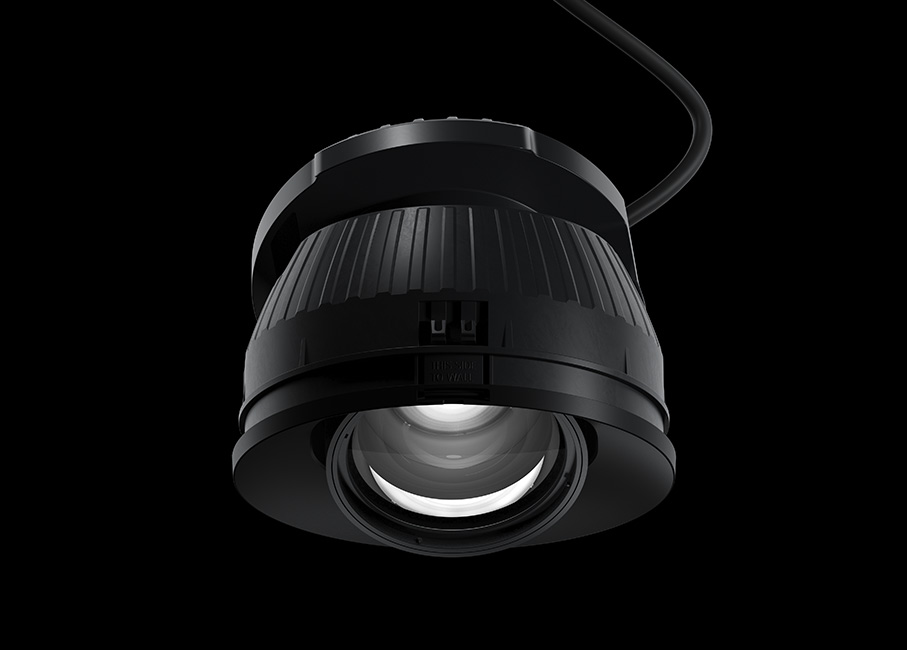

Recessed spotlight with darklight lens

Darklight technology

The Darklight lens not only creates a magical impression with just one light point. It also features precise, uniform light distributions, wide flexibility in the selection of beam characteristics and state of the art efficiency.

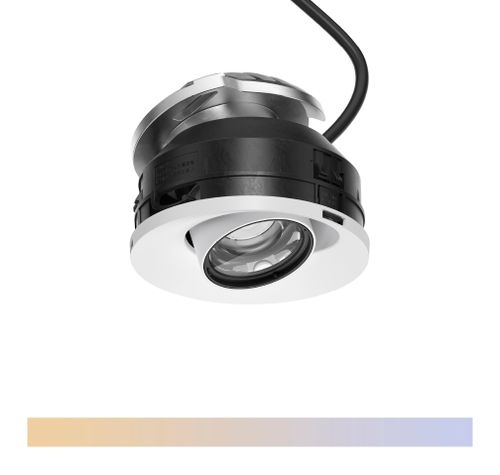

Tunable white technology

Just as the colour temperature outdoors changes continuously during the day, the colour temperature of the lighting can be adjusted indoors to e.g. support lighting concepts for Human Centric Lighting.

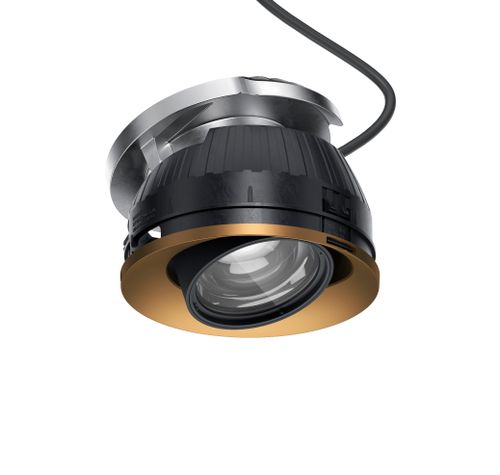

Cover as design element

Quinta can be customised according to individual requirements and used as a ceiling-integrated design element. In addition to black and white, over 10,000 housing colours can selected from.

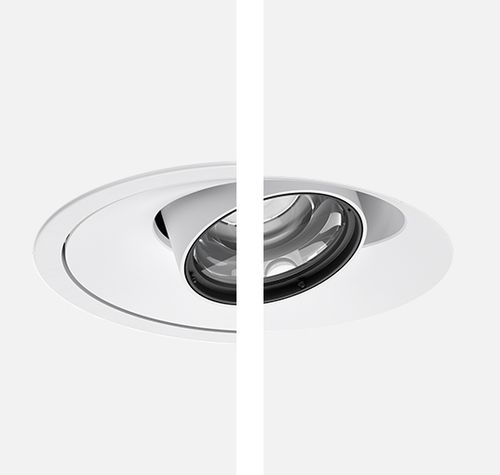

Covered or flush mounting detail

As standard, all recessed luminaires have overlapping installation details. Flush mounting rings are available as accessories.

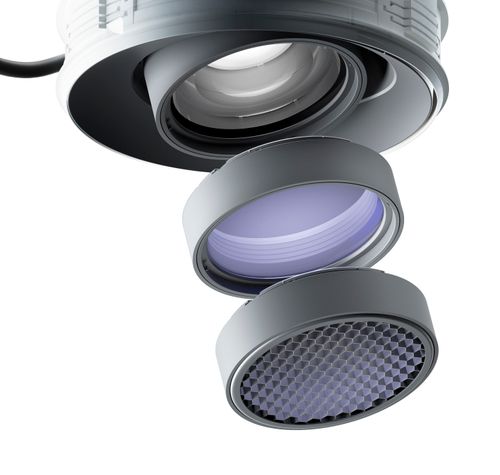

Flexibility of design thanks to accessories

Filters can be used to adjust the colour temperature. Snoots and honeycomb louvres increase visual comfort. You can model the spectrum and light distribution with filters or soft focus lenses.

Real team players: Quinta recessed spotlights go just as well with Quintessence or Atrium downlights as Eclipse or Uniscan spotlights. Quinta has the same mounting rings in sizes 3 to 8 as the downlights and the same darklight lenses as the spotlights, thus providing quality of light and visual comfort at the highest levels. In this way, ceiling-integrated general lighting, accent lighting and wallwashing can be elegantly realised throughout, for example in lobbies or in the café of a museum. The interchangeable darklight optics and matching accessories make Quinta extremely versatile. They simultaneously achieve a reduced, minimalist ceiling appearance – "light instead of luminaires". Up-to-date connectivity is a matter of course, including wireless control via Casambi Bluetooth as an option.

Quinta in the application

The recessed spotlight with darklight lenses. Visualisation: Electric Gobo

Individualise Quinta for your use case

With our “ERCO individual” service we offer you extensive options for the individualisation of series products as well as support in the development of sophisticated special luminaires. In order to match Quinta even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

Connection: 3- or 5-pole plug with connection cable (Wago or Wieland)
Cover, lens unit and mounting ring: 10,000 further colours

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Call an ERCO consultant: {{fon}}

Your contact partners worldwide

Product features in detail

1 ERCO lenses

Made of optical polymer
Darklight lenses: narrow spot, spot, flood, wide flood or extra wide flood
Spherolit lenses: oval flood, oval wide flood or wallwash

2 ERCO LED-module

High-power LEDs: warm white (2700K or 3000K), neutral white (3500K or 4000K) or tunable white (2700-7500K)
Collimating lens made of optical polymer

3 Lens unit and cover

White (RAL9002) or black
Polymer

4 Mounting ring

Covered mounting detail
Fixing for ceiling thicknesses of 1-25mm (size 3-4) or 1-30mm (size 5-8)
Polymer, white
For flush mounting: mounting ring to be ordered separately, fixing for ceiling thicknesses of 12.5–25mm

5 Housing

Cast aluminium, designed as heat sink
0°-30° tilt, 360° rotation
Fixing ring: polymer, black

6 Control gear

Switchable, DALI dimmable or Casambi Bluetooth

1 ERCO lenses

Made of optical polymer
Darklight lenses: narrow spot, spot, flood, wide flood or extra wide flood
Spherolit lenses: oval flood, oval wide flood or wallwash

2 ERCO LED-module

High-power LEDs: warm white (2700K or 3000K), neutral white (3500K or 4000K) or tunable white (2700-7500K)
Collimating lens made of optical polymer

3 Lens unit and cover

White (RAL9002) or black
Polymer

4 Mounting ring

Covered mounting detail
Fixing for ceiling thicknesses of 1-25mm (size 3-4) or 1-30mm (size 5-8)
Polymer, white
For flush mounting: mounting ring to be ordered separately, fixing for ceiling thicknesses of 12.5–25mm

5 Housing

Cast aluminium, designed as heat sink
0°-30° tilt, 360° rotation
Fixing ring: polymer, black

6 Control gear

Switchable, DALI dimmable or Casambi Bluetooth

Quinta: Light effect and planning aid

Emphasis of objects or architectural elements.

Lighting technology
Luminaire arrangement

Recessed spotlights

Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.

Light source
2W - 37.7W
192lm - 3882lm
Recessed spotlights

Recessed spotlights

Quinta recessed spotlights effectively accentuate works of art, merchandise and architectural details. The ideal angle of tilt (α) for this is around 30°. The object is modelled without distorting the effect as a result of excessive shadowing. It also prevents shadows cast by the observer.

Arrangement: α = 30°

Wide-beam illumination of larger objects or spatial zones.

Lighting technology
Luminaire arrangement

Recessed floodlights

Very wide rotationally symmetrical or axially symmetrical light distribution for floodlighting.

Light source
2W - 37.7W
192lm - 3882lm
Recessed floodlights

Recessed floodlights

The ideal angle of tilt (α) for floodlighting objects with a long, square shape, e.g. pictures, sculptures or merchandise displays, is around 30°.

Arrangement: α = 30°

Vertical illuminance for brightening and dividing the space.

Lighting technology
Luminaire arrangement

Recessed lens wallwashers

Asymmetrical light distribution for highly uniform wallwashing.

Light source
2W - 37.7W
192lm - 3882lm
Recessed lens wallwashers

Recessed lens wallwashers

For uniform vertical lighting, the distance to the wall (a) of Quinta lens wallwashers should be around one third of the room height (h). This results in an angle of tilt (α) of approx. 30°.

Arrangement: a = 1/3 x h or α = 30°

For good longitudinal uniformity, the spacing (d) of Quinta lens wallwashers may be up to 1.2 times the distance to the wall (a).

Arrangement: d ≤ 1.2 x a

Optimal wall distances and luminaire spacing values for individual products are specified in the product data sheets.
