Parscan. Minimalist design

Elegant presence in museums and shops

Parscan

Ideal for duct mounting

The minimalist shape of Parscan is suited for situations in which the luminaire should appear as unobtrusive as possible such as in museums or shops. Integrated in a ceiling channel, the luminaires are largely concealed from view.

Parscan

Oval flood can be freely rotated

The Spherolit lens oval flood in round luminaire heads can be rotated freely for optimum adjustment of the lighting on different objects or to balance perspective distortion.

Parscan

High lumen packages for very high illuminances

High brightness contrasts help you direct attention. To this end, the product range includes luminaires with high lumen packages.

Parscan

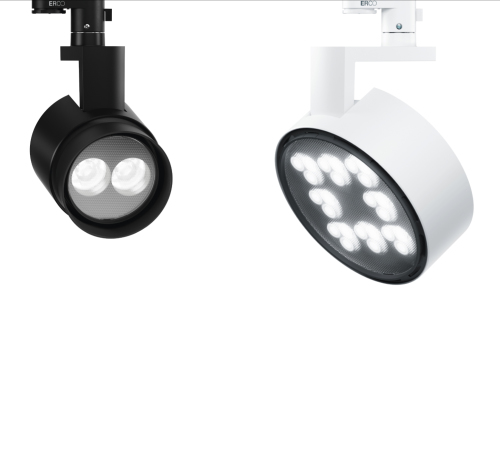

Small luminaire dimensions

Small luminaires appear unobtrusive and direct the focus onto the light. Compact luminaire dimensions are convenient particularly in small spaces.

Structure and characteristics

1

2

3

4

5

1

ERCO Spherolit lens

  • Light distributions: narrow spot, spot, flood, wide flood, oval flood or wallwash
  • Oval flood rotatable through 360°

2

ERCO LED module

  • High-power LEDs on metal-core PCB
  • Light colours: warm white or neutral white
  • Collimating lens made of optical polymer

3

Housing and bracket

  • White (RAL9002), black or silver
  • Cast aluminium, powder-coated
  • 0°-90° tilt
  • Bracket on transadapter rotatable through 360°

Control gear:

  • Phase dimmable or DALI dimmable

Phase dimmable version:

  • Dimming with external dimmers possible (trailing edge) and potentiometer for brightness control 1%–100% on the luminaire

4

Control gear

  • Phase dimmable or DALI dimmable
  • Phase dimmable version: Dimming with external dimmers possible (trailing edge) and potentiometer for brightness control 1%–100% on the luminaire

5

ERCO 3-circuit adapter or ERCO DALI adapter

Light, not luminaires - this is the foundation on which the sleek, cylindrical shape of Parscan is modelled. Different lighting solutions can be implemented efficiently thanks to precise and flexible photometrics. If the spotlight is directed vertically downwards as a downlight, the support bracket merges into the cylindrical shape. With its black housing, compact shape and a luminaire head that barely swivels out when rotated or tilted, the Parscan is also ideal for mounting in ceiling channels. The excellent glare control enhances visual comfort even in challenging lighting situations. Displaying a minimalist design, the luminaire appears unobtrusive in museums, shops or places of worship.



System overview 220V-240V/50Hz

  • Spotlights
  • Floodlights
  • Lens wallwashers

Accentuation

Emphasis of objects or architectural elements.

Spotlights

Very narrow to very wide beam, rotationally symmetrical light distribution for accent lighting.

  • LED
  • 4W - 48W
  • 420lm - 6600lm
  • Flood, Spot, Wide flood, Narrow spot

Spotlights

Parscan spotlights accentuate artwork, products and architectural details effectively. The ideal angle of tilt (α) for this is around 30°. The object is modelled without distorting the effect as a result of excessive shadowing. It also prevents shadows cast by the observer.

Arrangement: α = 30°


Planning data for download 220V-240V/50Hz


Product overview 220V-240V/50Hz
