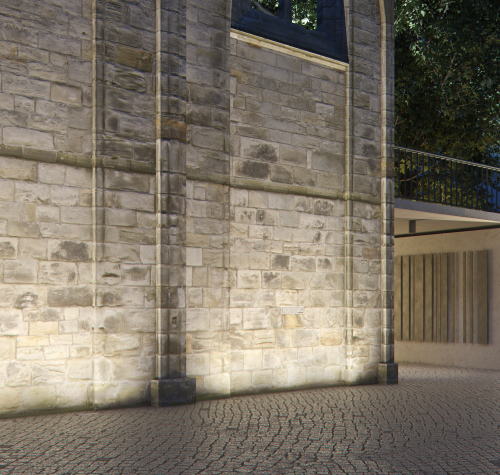

Site. Emphasising wall structures for a three-dimensional effect

Grazing light wallwashers accentuate surface texture on walls and façades

Site

Excellent visual comfort

ERCO has developed luminaires with special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.

Site

Large luminaire spacing

ERCO’s efficient photometrics enable selected luminaires to be spaced particularly far apart, thereby minimising the number of luminaires required.

Site

Grazing light wallwashers

Grazing light wallwashers need to be positioned close to the wall for ideal effects.

Structure and characteristics

1

2

3

4

5

1

Softec lens

    2

    ERCO LED module

    • High-power LEDs on metal-core PCB
    • Light colours: warm white or neutral white
    • Collimating lens made of optical polymer
    • Tiltable ±10°

    3

    Frame

    • Covered or flush mounting detail
    • Stainless steel
    • Safety glass: 10mm, clear

    4

    Housing

    • Polymer, black
    • Cable 3x1.5mm²
    • Installation with separate connection sleeve
    • Mounting in recessed housing: can be driven over by vehicles with pneumatic tyres. Load 20kN
    • Mounting in hollow floor only with covered mounting detail: mounting kit to be ordered separately

    5

    Control gear

    • Switchable or DALI dimmable

    Site emphasises the tactile qualities of architectural materials: The grazing light wallwasher brings out the finest wood, concrete or brick texture as exquisitely as rough surfaces such as natural stone, thereby enabling the luminaire to set off historic features or regional materials. In contrast to conventional wallwashers which give walls a soft character, Site adds an almost tactile dimension through high-contrast light and shadow effects. The luminaire can be tilted conveniently by up to 10° in both directions. With its asymmetrical light distribution, the grazing light wallwasher can be positioned up to 30cm close to the wall and still produce an exceptionally uniform beam. The resulting special rendering of vertical illuminance combines strikingly illuminated texture for scenic effect with efficient outdoor illumination.


    Pictures of application


    System overview 220V-240V/50Hz

    • Grazing light wallwashers

    Wallwashing

    Vertical illuminance for brightening the surroundings and segmenting the exterior landscape.

    Grazing light wallwashers

    Asymmetrical light distribution for accentuated façade lighting.

    • LED
    • 24W
    • 2520lm - 3300lm

    Grazing light wallwashers

    To allow surface textures to come to the foreground of attention, the distance (a) of Site grazing light wallwashers from the wall should be approx. 20cm.

    Arrangement: a = 20cm

    Application: surfaces with a three-dimensional texture, e.g. natural stone walls.

    For good longitudinal uniformity, the spacing (d) of two Site grazing light wallwashers may be up to 1m.

    Arrangement: d ≤ 1m

    The optimal wall offset and luminaire spacing for each product are indicated in the wallwasher tables in the catalogue and the product data sheets.
