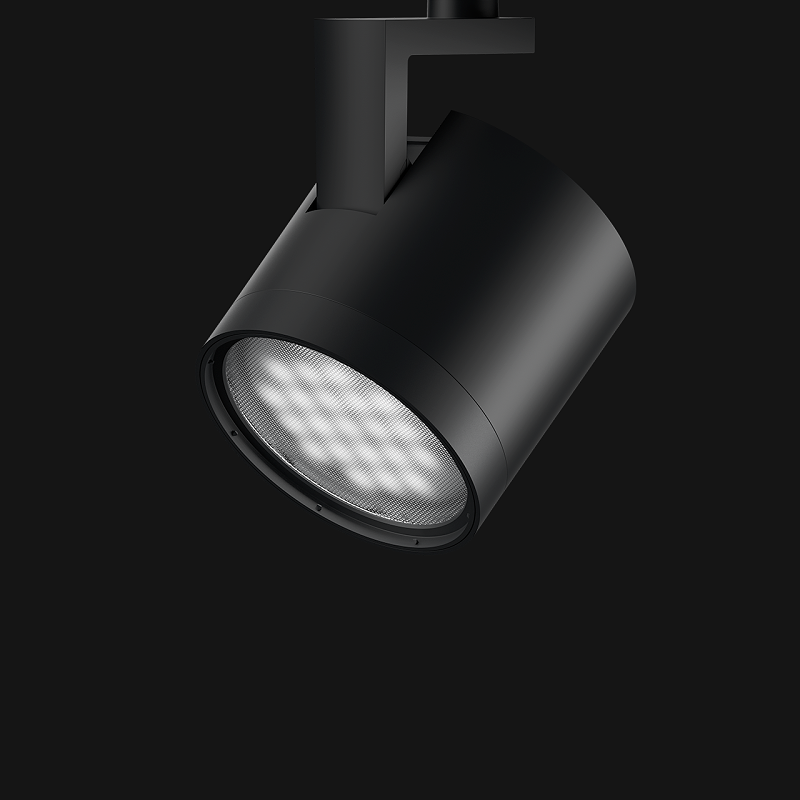

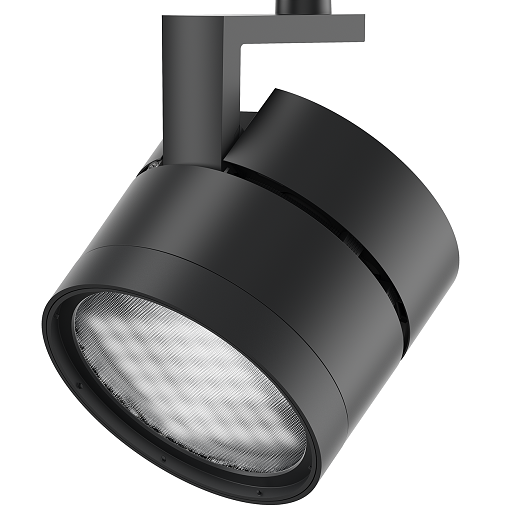

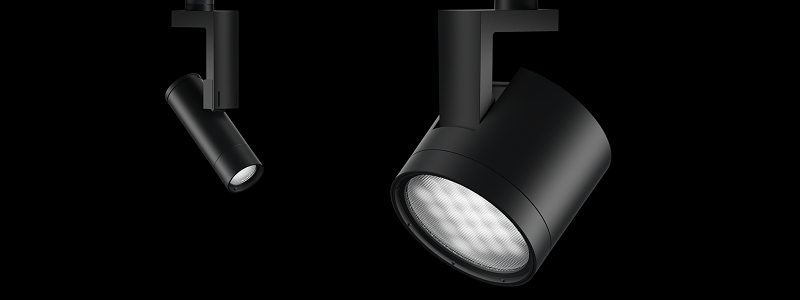

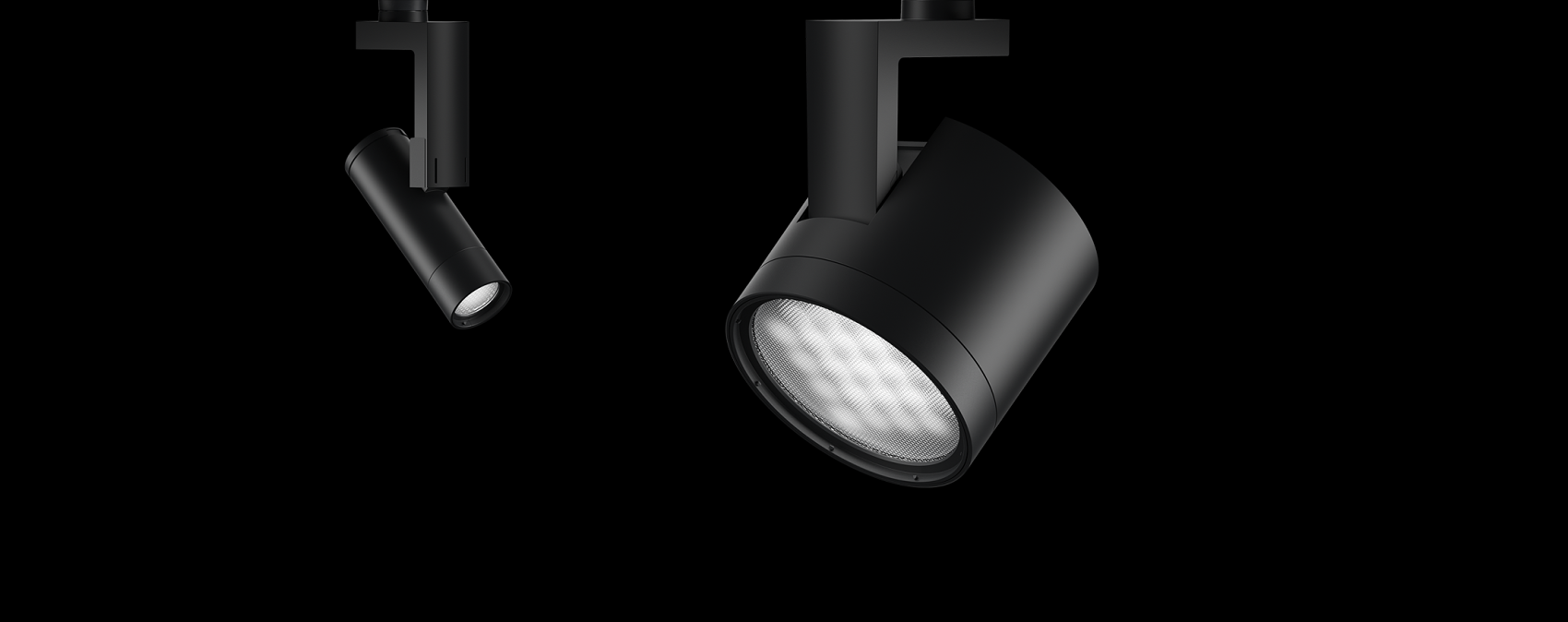

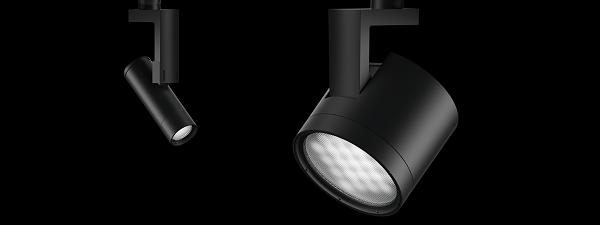

The next generation spotlight:

The new Parscan!

The new Parscan: Now in six sizes for every application

The name of Parscan has stood for outstanding quality of light and sheer elegance for almost 20 years. With Parscan 48V, Parscan InTrack and Parscan OnTrack, the new generation now comprises three product ranges. With 6 sizes, 12 interchangeable distributions, filters, tunable white and RGBW as well as digital connectivity, the new generation now offers even more Parscan. This enables you to illuminate museums, boutique offices and foyers more efficiently and with more diversity than ever before.

More effectiveness

The new Parscan brings more light to the target surface

More flexibility

Maximum system diversity with more distributions, spectra and accessories

More digitality

Modern connectivity and interchangeable plug-on controls

What project are you currently working on?

Select an application example:

Our recommendation:

Parscan InTrack

Size:
XXL (7927lm/56,4W)
Control:
DALI
Light distribution:
Spot (15°)
Design:
InTrack-Adapter
Light colour:
4000K CRI 82

Parscan InTrack

Size:
M (1335lm/12.6W)
Control:
Casambi Bluetooth
Light distribution:
Spot (15°)
Design:
Concealed Intrack adapter
Light colour:
Tunable white

Parscan 48V

Size:
S (589lm/5.7W)
Control:
Casambi Bluetooth
Light distribution:
Oval wide flood (60° x 80°)
Design:
Miniaturised in small track
Light color:
3000K CRI 97
Modify configuration

New standards in quality of light and effectiveness

The new Parscan features impressive quality of light. The lens system directs the light precisely and free of spill light. Parscan thus succeeds in creating accent lighting that sets it apart from conventional spotlights. With 108lm/W, Parscan features one of the most efficient optics. The decisive difference to the competition: Parscan brings up to 55% more light onto the target surface, setting new standards for energy-efficient lighting.

  • Outstanding effectiveness with more lux per watt
  • Spherolit 2.0: More efficiency and greater visual comfort
  • Precise light beams without spill light ensure ideal visual comfort

Implement your project with the new Parscan

Allow us to approach your new project together.

Select a service:

Your contact data:

free of charge and without obligation

Your data will be handled confidentially. For further information see Data protection declaration.

Three product ranges, all applications

Would you like a miniaturised luminaire on a very compact 48V track? Are you looking for a luminaire with an elegant Intrack adapter? Would you like to use Parscan directly in your existing system? To be able to respond optimally to your needs, we developed Parscan in three different variants. Parscan 48V, Parscan InTrack and Parscan OnTrack allow you to find the right concept for every application

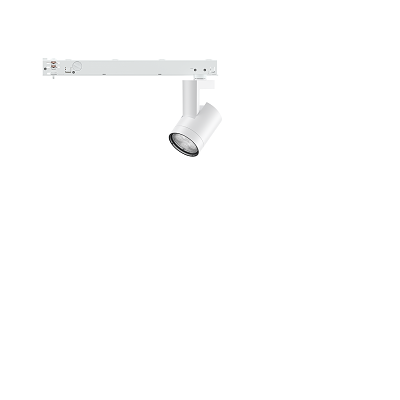

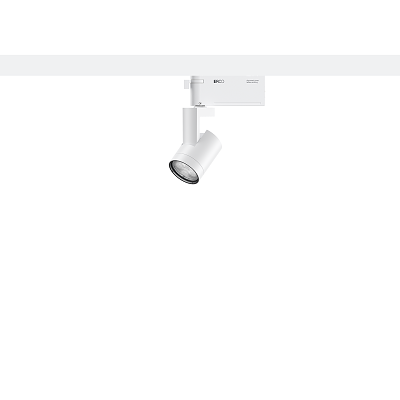

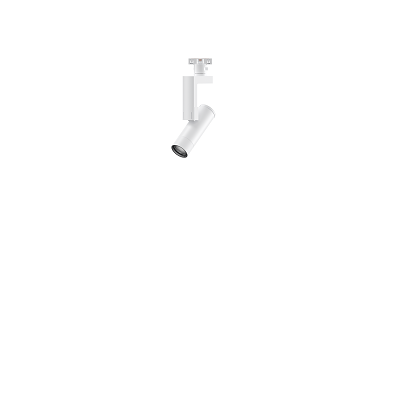

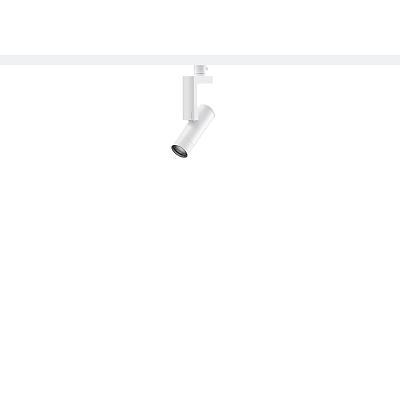

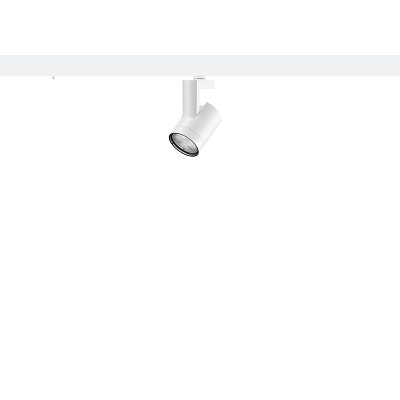

Parscan 48V – elegant with a compact track

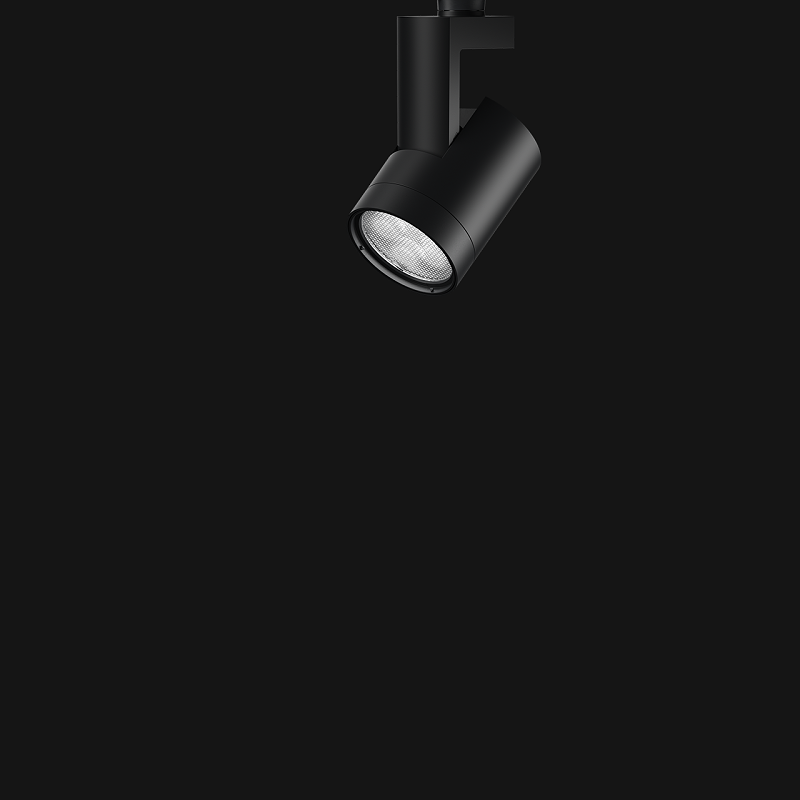

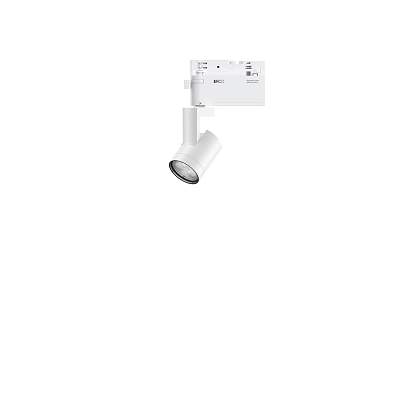

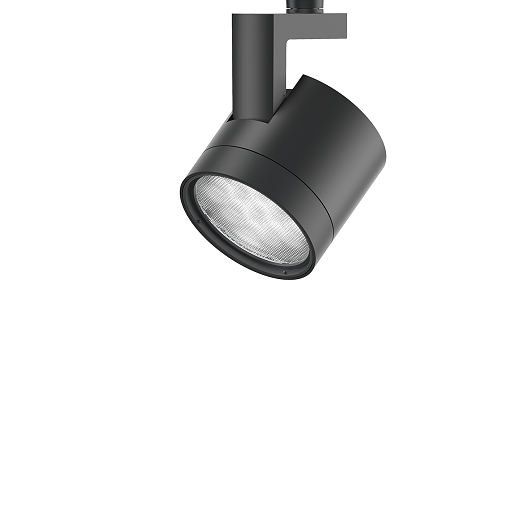

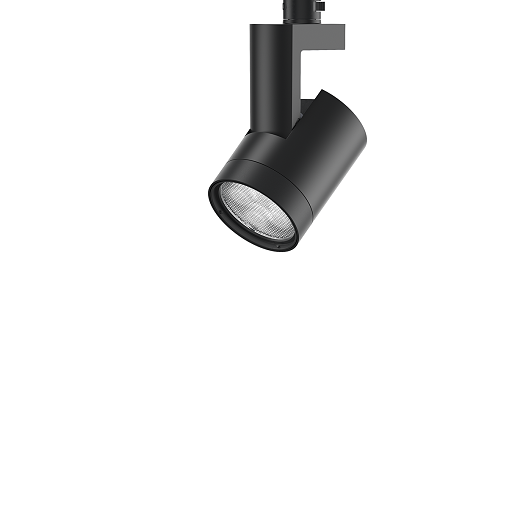

Parscan InTrack – all wattages and connectivity options

Parscan Ontrack – optimised for existing installations

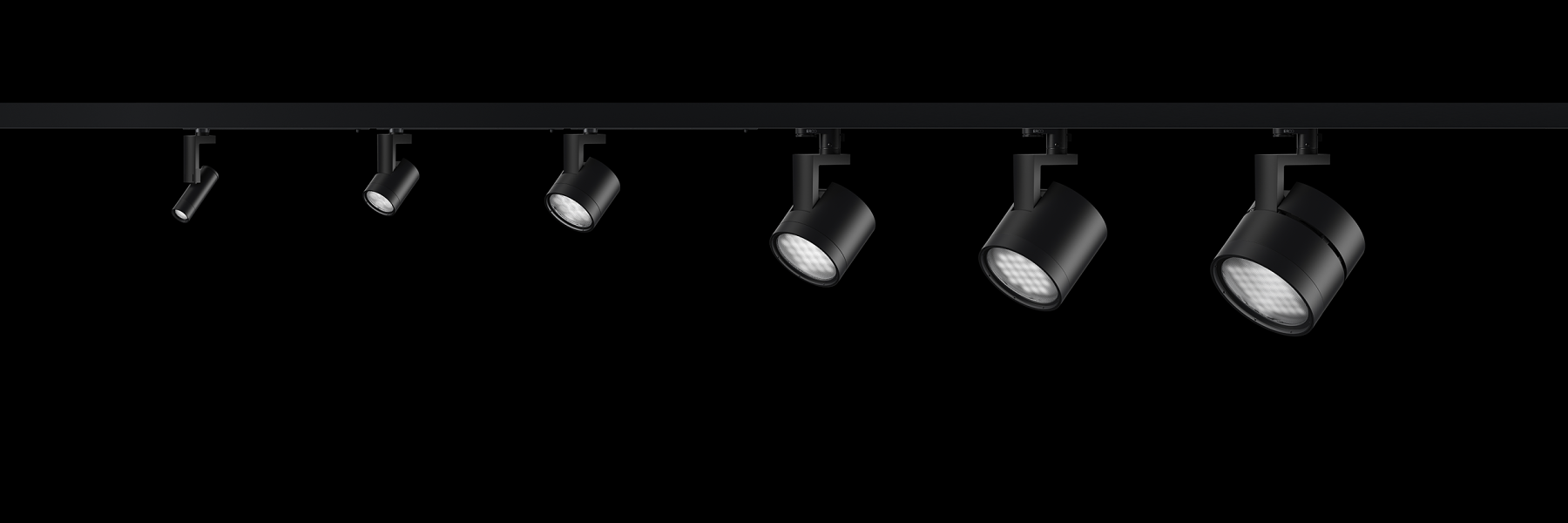

The new Parscan for any room height

Optimised for different applications, the new Parscan always offers the right wattage. Parscan with sizes XS to M is perfect for use in display cases, museums or offices. For illuminating high spaces such as foyers and atriums, use Parscan sizes L to XXL. Parscan thus sets unique standards of diversity in a spotlight system.

Size XS

Ideal for small exhibits and shop windows and for use in boutique offices

  • 32mm
  • 198lm / 2.0W – 371lm / 3.1W

Size S

Perfect for valuable art and room heights to 3m.

  • 60mm
  • 275lm / 3.1W – 1056lm / 8.1W

Size M

Ideal for universal use in museums and shops with room heights up to 5m.

  • 92mm
  • 351lm / 4.2W – 2375lm / 18.2W

Size L

Perfect for impressively displaying exhibitions with room heights up to 8m.

  • 129mm
  • 1054lm / 12.7W – 3523lm / 25.1W

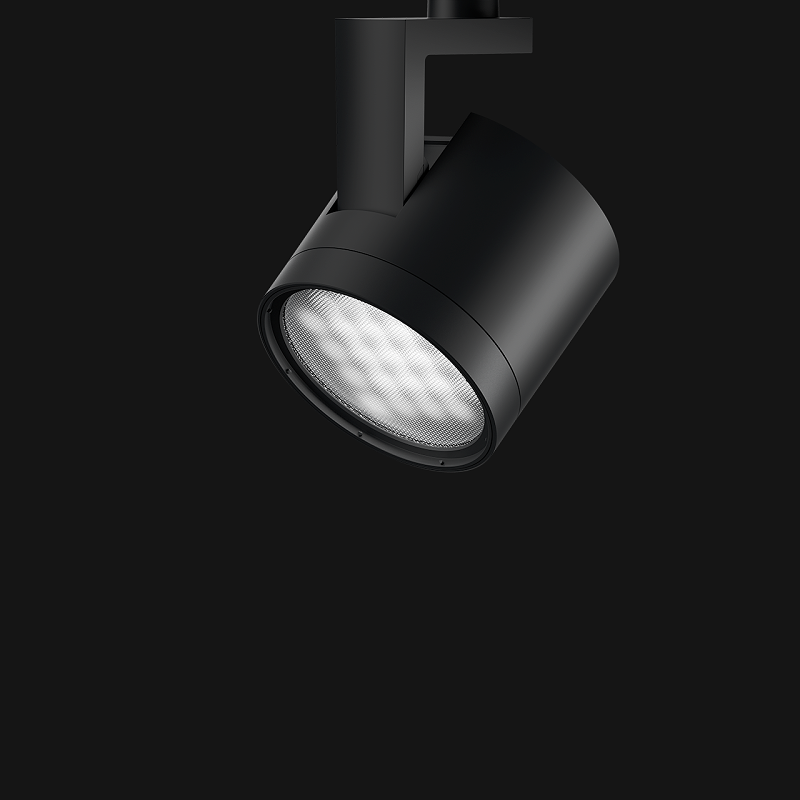

Size XL

Ideal for high rooms such as foyers with heights of 8m and more.

  • 153mm
  • 1405lm / 16.9W – 4624lm / 32.9W

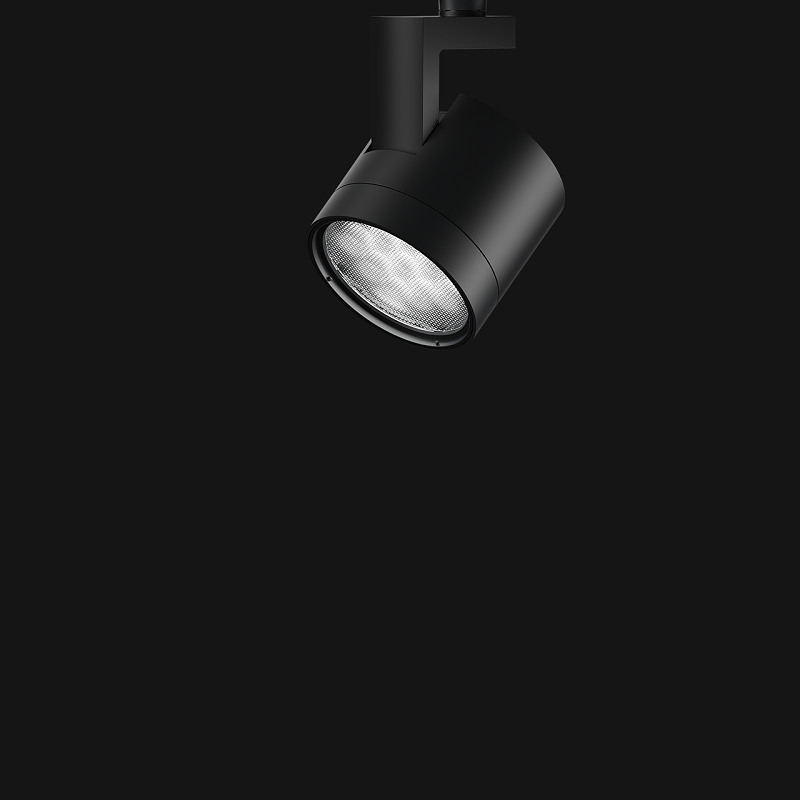

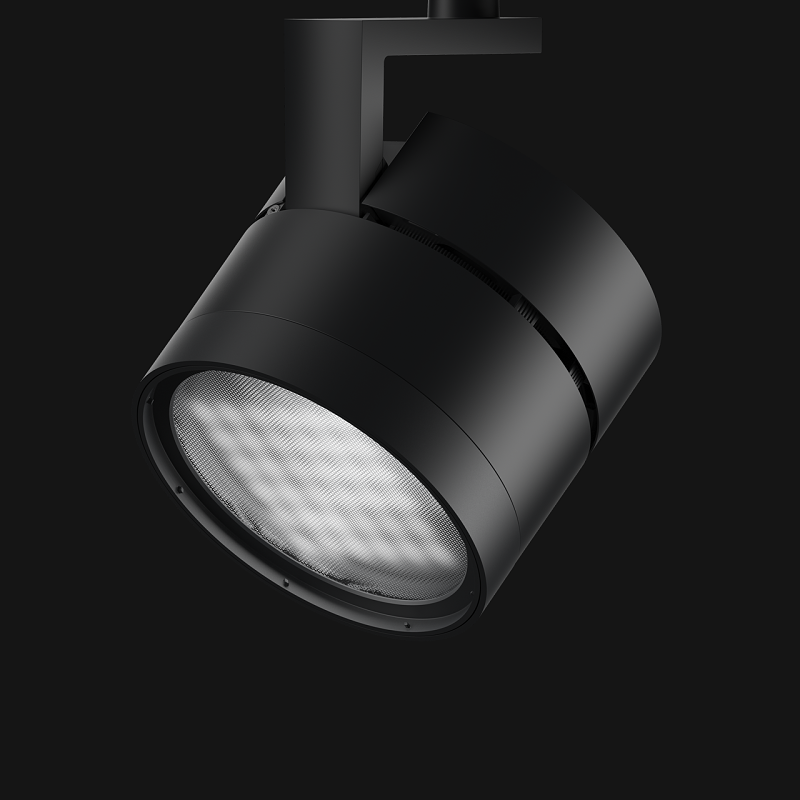

Size XXL

Ideal for very high rooms such as atriums and airports with heights of 10m and more.

  • 191mm
  • 1951lm / 21.7W – 7927lm / 56.4W
  1. XS
  2. S
  3. M
  4. L
  5. XL
  6. XXL

The right light spectrum for every application

Whatever you wish to illuminate, Parscan, with six spectra, offers the right combination of colour temperature and colour rendering. With conversion filters, you can even create 24 additional spectra from these six LED types. Luminaires with tunable white offer you even more flexibility: simply adjust the colour temperature dynamically. Parscan with RGBW is available for colour displays.

24 light spectra and more with conversion filters

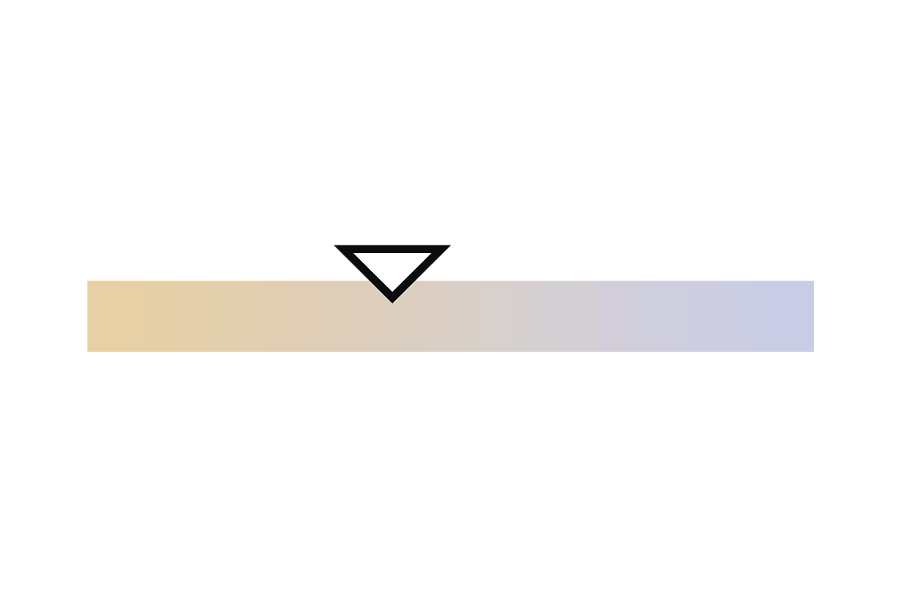

Tunable white: Dynamically adjust light colour

RGBW luminaires for coloured lighting design

12 distributions for perfect displays

Precise contours, high-contrast accents or uniform wallwashing: select from 12 different distributions and change lenses easily on site. Parscan makes all this possible with just one luminaire range. The light distributions are characterised by highest precision for exactly defined light beams and maximum illuminance on the target surface.

  • Distributions from narrow spot to wallwash
  • Adjustable contour spotlights and zoom spotlights available
  • Plug and play: change lens units without tools and with just one hand
  • Accessories: modulate distributions with lenses such as the soft focus lens or sculpture lens

Narrow Spot 5°

0.26m at illumination distance of 3m

Spot 18°

0.84m at illumination distance of 3m

Flood 32°

1.55m at illumination distance of 3m

Zoom Spot 17°-67°

0.84 – 4.05m at illumination distance of 3m

Zoom oval 25° x 65° – 62° x 68°

1.33 x 3.82m - 3.61 x 4.04m at illumination distance of 3m

Narrow framing

1.36m at illumination distance of 3m

Wide framing

2.09m at illumination distance of 3m

Wide flood 51°

2.55m at illumination distance of 3m

Extra wide flood 79°

5.22m at illumination distance of 3m

Oval flood 19° x 63°

2’4’’x 11’0’’ at illumination distance of 3m

Oval wide flood 55° x 83°

3.06 x 4.95m at illumination distance of 3m

Wallwash

Perfect wallwashing made easy

Do you have a project with challenging conditions? The new Parscan wallwashers offer even more lighting design flexibility because both luminaire spacing and wall spacing can be varied. With outstanding quality of light and excellent uniformity, Parscan always creates perfect wallwashing.

  • Light starts very high up on the ceiling
  • Very high illuminance uniformity in the horizontal
  • Vertical uniformity makes the wall appear bright over the entire height
  • Large luminaire spacing reduces investment cost
  • Perfect visual comfort due to very good glare control
The next generation spotlight: The new Parscan!

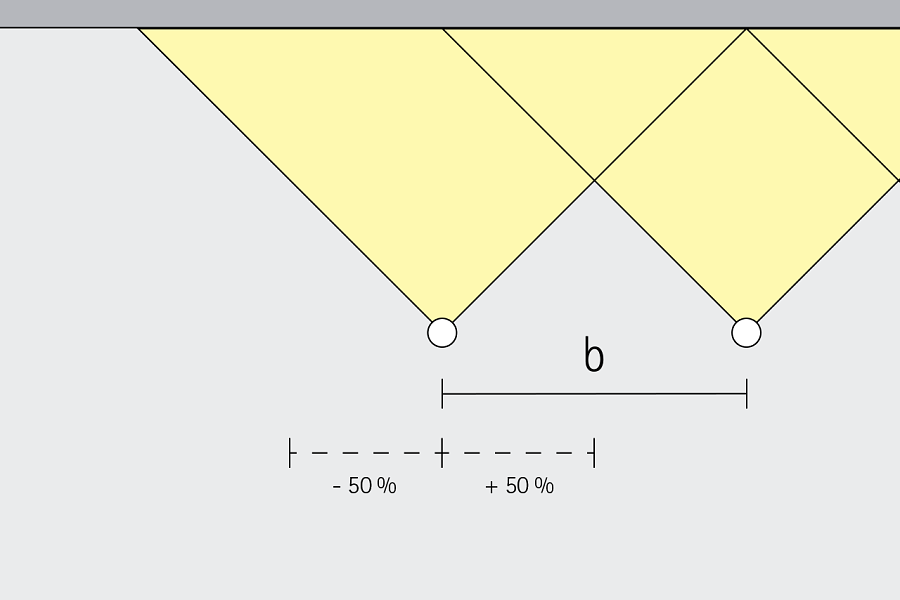

Wallwashing for all situations

We know that planning and reality often diverge. Especially during installation, beams and air-conditioning equipment can prevent wallwashers from being optimally positioned on the ceiling. The new generation of wallwashers has been designed to give you maximum freedom of design. Compared to previous wallwashers, the distance between two luminaires can deviate by +/- 50%, with comparable quality of light. This means with a room height of 6m, the luminaire spacing can vary from 1m to 3m.

The next generation spotlight: The new Parscan!

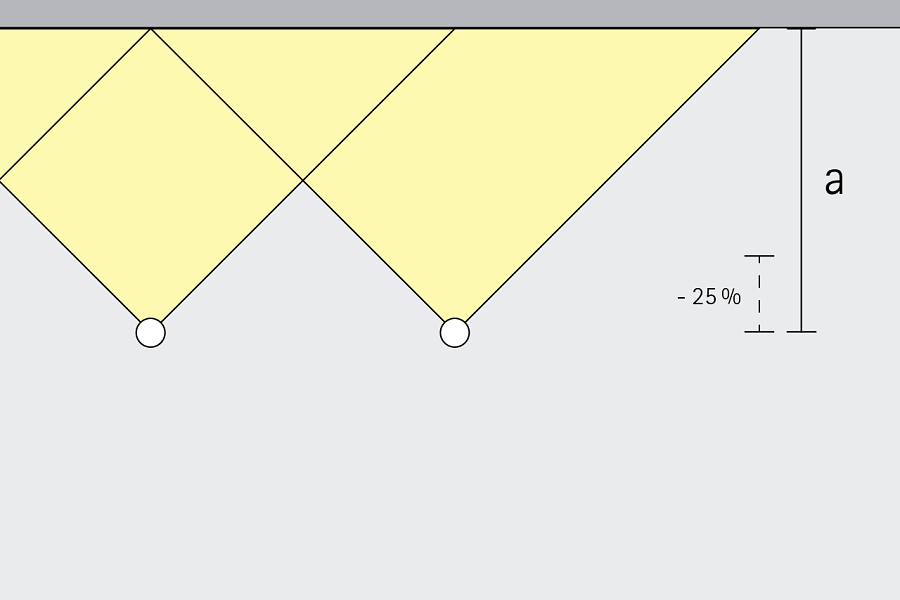

Ideal for short distances to the wall

Install Parscan wallwashers even at short distances to the wall. Compared to conventional wallwashers, the new Parscan wallwashers can reduce the distance to the wall by up to 25% with the same quality of light. With a room height of 6m, the wallwashers can therefore come as close as 1.5m to the wall.

Use accessories to individualise light

  • Wide range of options for additional distributions, adapted spectra and greater visual comfort
  • Tool-free mounting of accessories
  • Accessories can be combined: supplement your distribution with up to 3 components

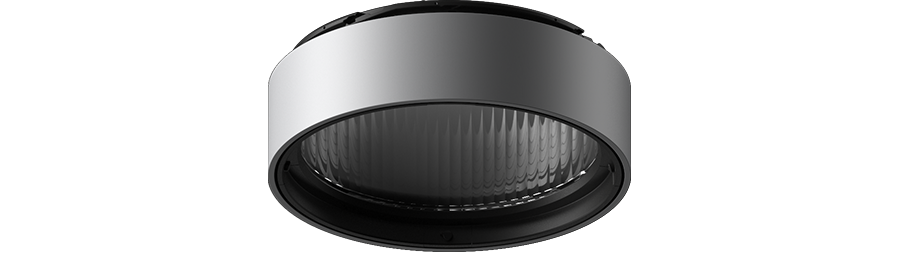

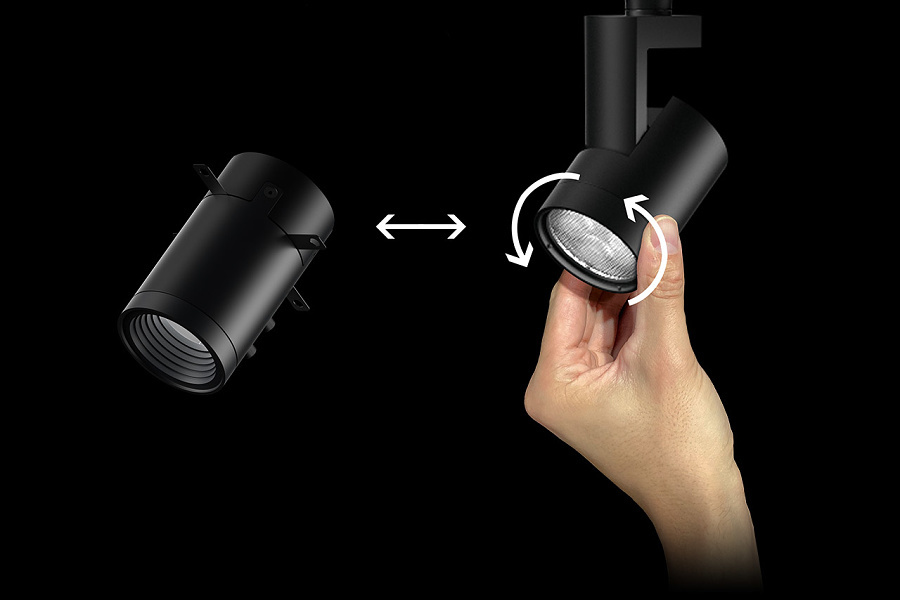

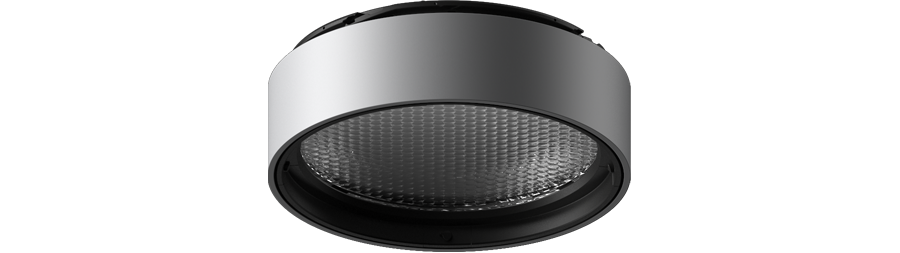

Replace the distribution of your spotlight for another one without tools

Modulate the light distribution with lenses

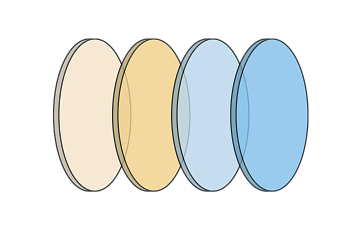

Modify the light spectrum with filters

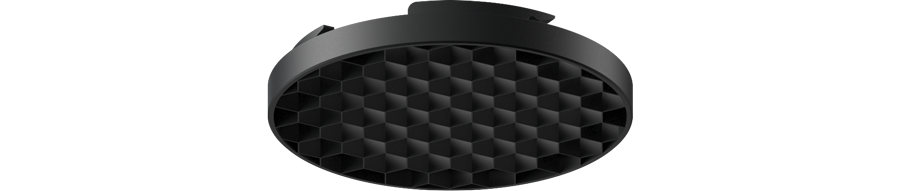

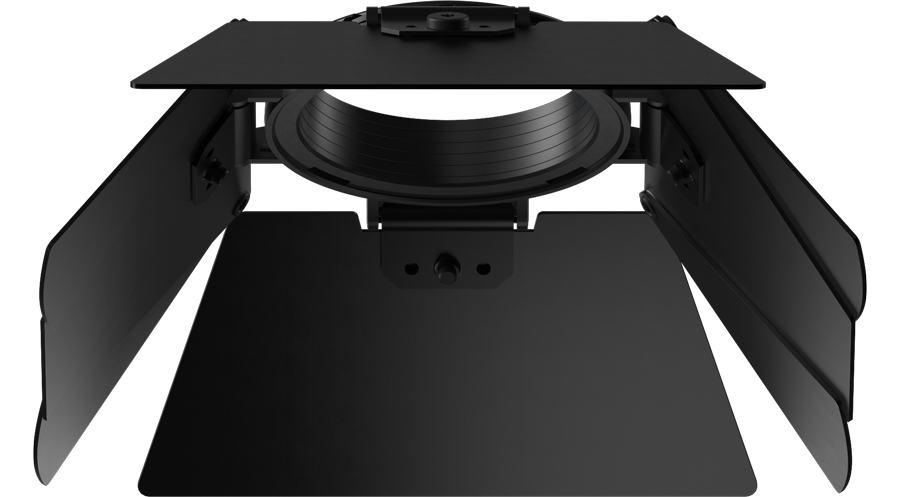

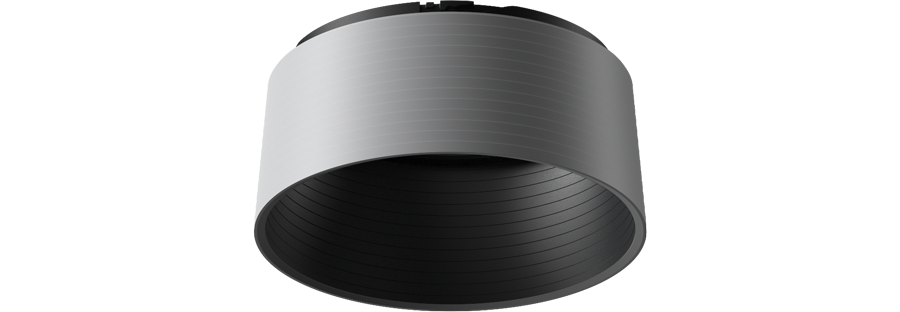

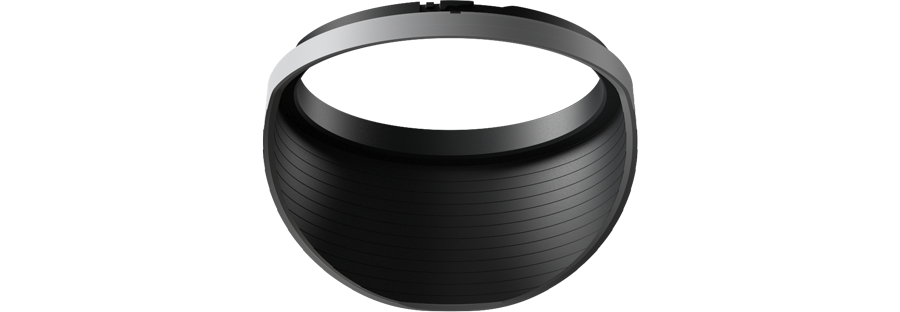

Achieve even more visual comfort with anti-glare elements

How can we help you further?

You can contact your regional contact partner via:

You can gladly send us an e-mail or ask your question here

Your data will be handled confidentially. For further information see Data protection declaration.

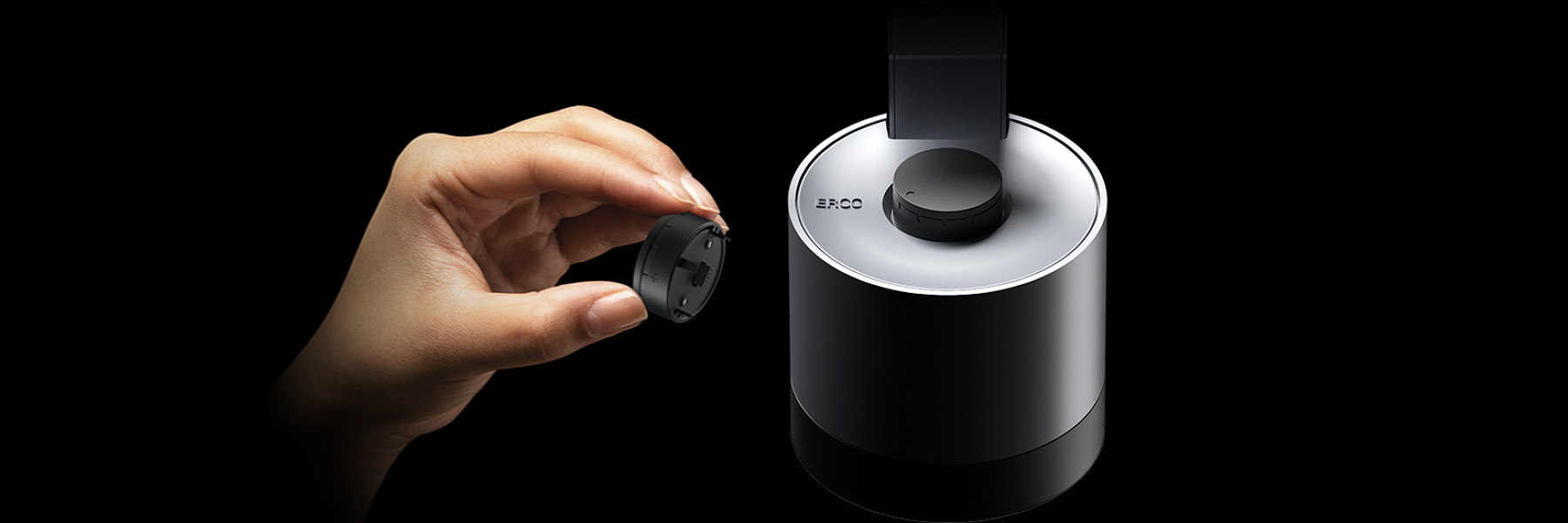

Interchangeable plug-on control

Change from On-Board Dim to smart operation via tablet. The add-on control unit allows you to update your new Parscan to your application. Switch between control types On-board Dim, Casambi Bluetooth, DALI via Gateway and Zigbee 3.0.

Digital and flexible: connectivity with Parscan

With Parscan, you can choose from six types of control:
wired with Multi Dim, DALI, Push Dim or phase dimming and wireless with Casambi Bluetooth and Zigbee 3.0.

Three add-on control units offer you additional flexibility. By exchanging the add-on control unit on the rear of the luminaire you can change the control mode of your Parscan spotlight at any time, for example from On-Board Dim to wireless Casambi Bluetooth.

The new Parscan
configure now!

Find the right Parscan for your individual lighting tasks by specifying technical requirements.

Do you need further information?

Do you have a question or do you need an offer for a specific planning task? Our regional contact persons will be happy to help you:

Contact us!
header image

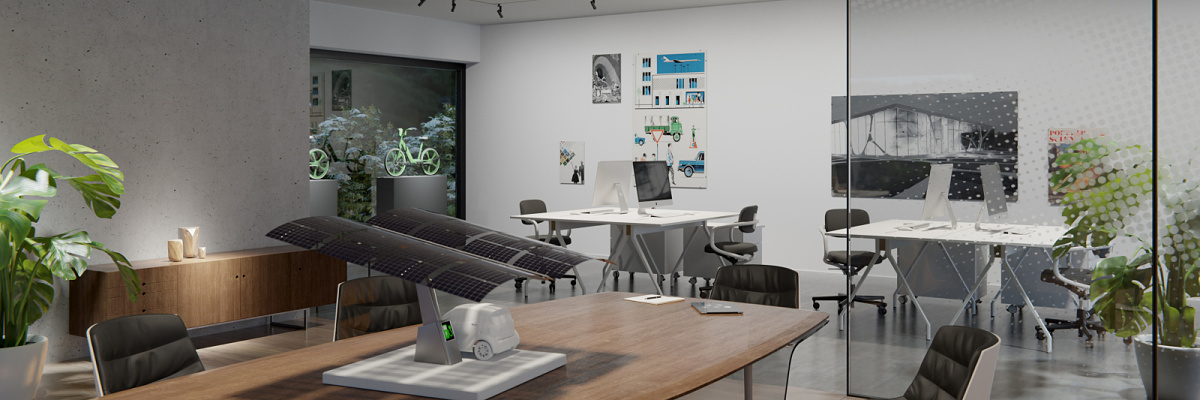

Sample Parscan for modern boutique offices

Do you want to illuminate a boutique office with very small luminaires? The new Parscan 48V is the perfect solution. Simply contact us and we will provide you with samples.

Your contact data:

Your data will be handled confidentially. For further information see Data protection declaration.

free of charge and without obligation

header image

Sample Parscan for modern boutique offices

Do you want to illuminate a boutique office with very small luminaires? The new Parscan 48V is the perfect solution. Simply contact us and we will provide you with samples.

Your contact data:

Your data will be handled confidentially. For further information see Data protection declaration.

free of charge and without obligation

header image

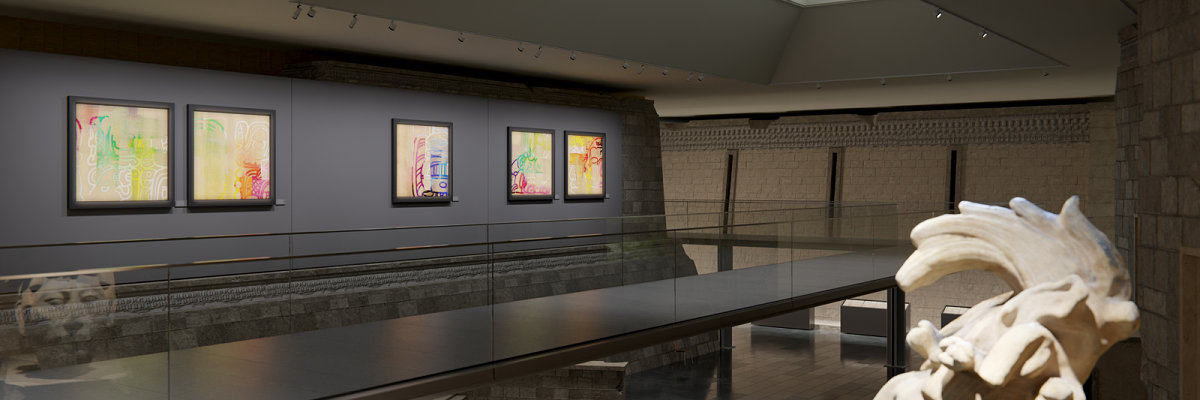

Sample Parscan for museums and galleries

Do you want to display art with high contrast and simply adjust the colour temperature via Bluetooth? The new Parscan is the perfect solution. Simply contact us and we will provide you with samples.

Your contact data:

Your data will be handled confidentially. For further information see Data protection declaration.

free of charge and without obligation

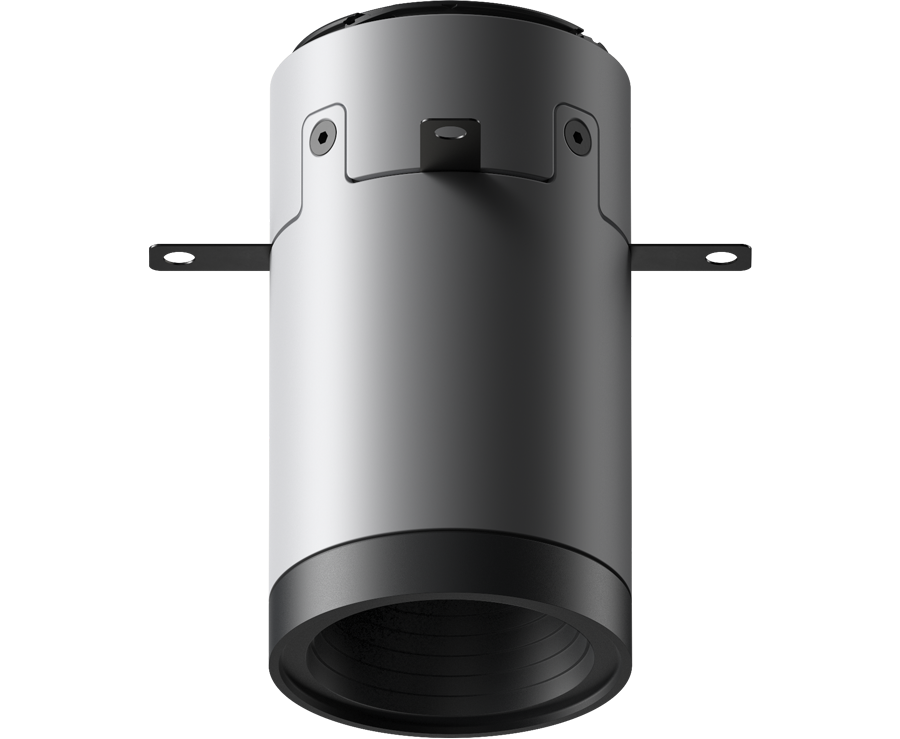

For perfect art displays: The new Parscan contour spotlights

Framing is the ideal way to precisely illuminate exhibits in galleries and museums. We offer you the right professional tool for the purpose: Parscan – the best contour spotlight for generating precisely defined light beams and featuring maximum flexibility in use thanks to interchangeable optics. Thus in no time at all a framer is transformed into a spotlight with round light distribution – and vice versa. Discover completely new possibilities for the ideal presentation of art.

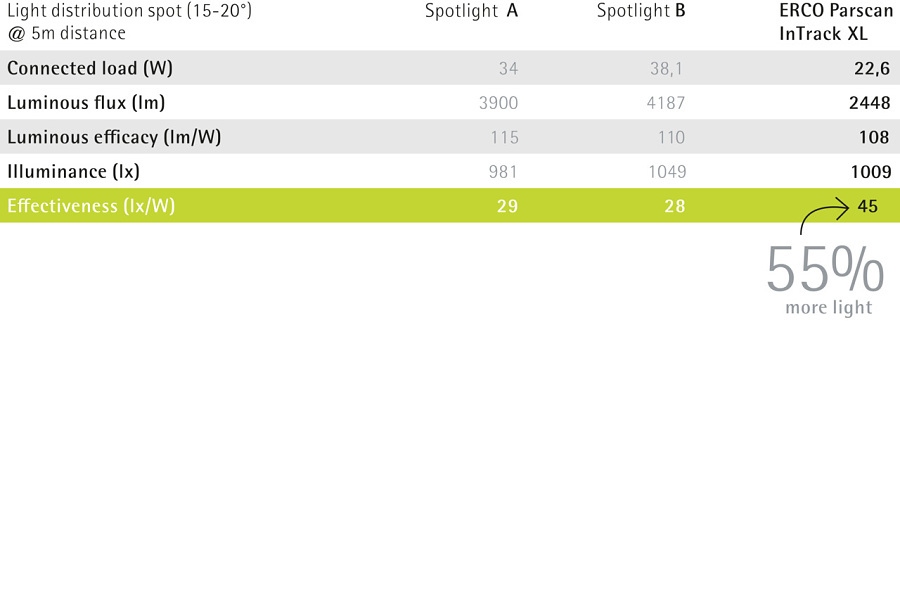

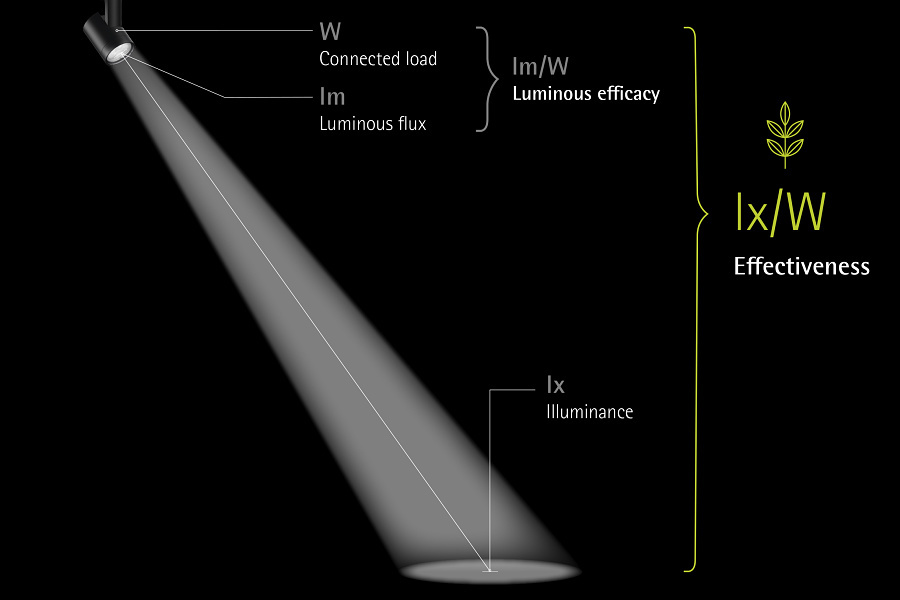

50% more light on the target surface

Sustainable lighting is more than just looking at the efficiency of a luminaire in lm/W. Whether for accent lighting, uniform wallwashing or the illumination of office workstations – the decisive factor is how effectively the expended electrical energy is utilised, i.e. how much light reaches the target surface (in lx/W).

ERCO represents the most effective lighting tools and methods of lighting on the market. A comparison with the competition shows: with a similar connected load, Parscan for example achieves a significantly higher illuminance. This means Parscan brings visibly and measurably more light to the target surface and is therefore more effective than other spotlights.

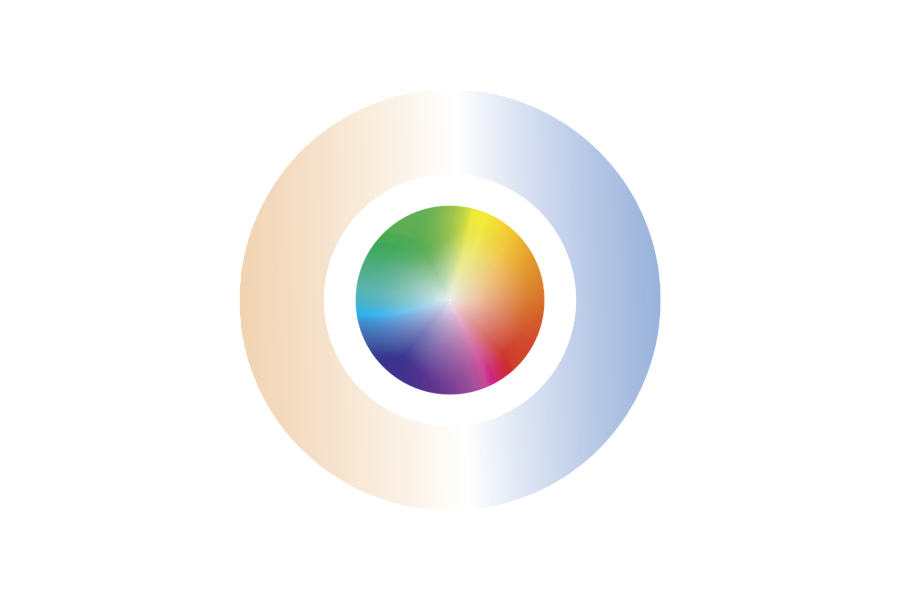

The right light spectrum for every application

Select the ideal combination of light colour and colour rendering: 3000K CRI 97 is the right choice for the perfect rendering of colours. Maximum energy efficiency is achieved with 4000K CRI 82. 24 more spectra become available with conversion filters – ideal for temporary exhibitions that require an adapted lighting concept.

Parscan with tunable white is the right choice if you want to adjust the colour temperature dynamically – according to the course of daylight for example. This enables you to perfectly illuminate art or merchandise.

Two Parscans in one: RGBW luminaires not only allow a choice of over 16 million colours and pastel shades, but also white light colours. The special optic creates uniform, colour shadow-free intermixing which is ideal for both coloured and white presentations of art or merchandise.

Overview of sizes

XS S M L XL XXL

Pasrscan 48V

for Minirail
48V track

Parscan InTrack

for 220-240V
track

Parscan Ontrack

for 220-240V
track

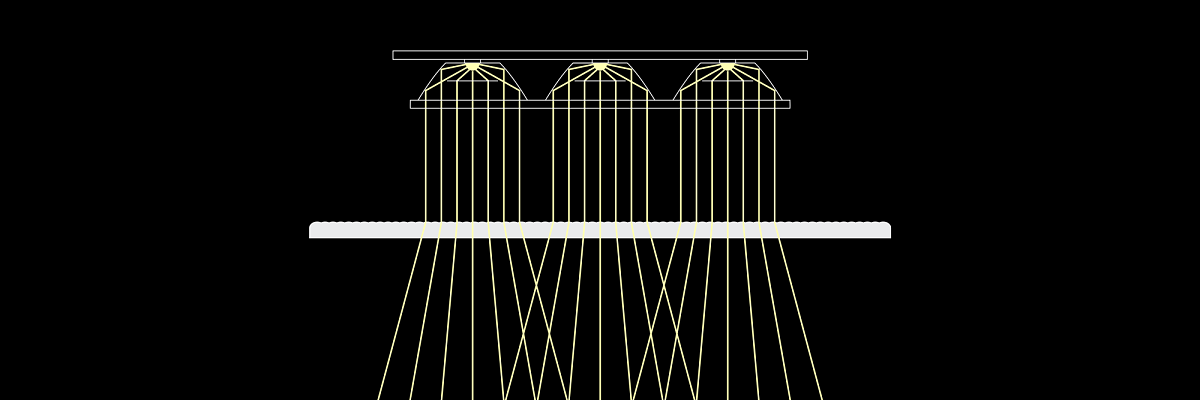

New generation Spherolit lenses

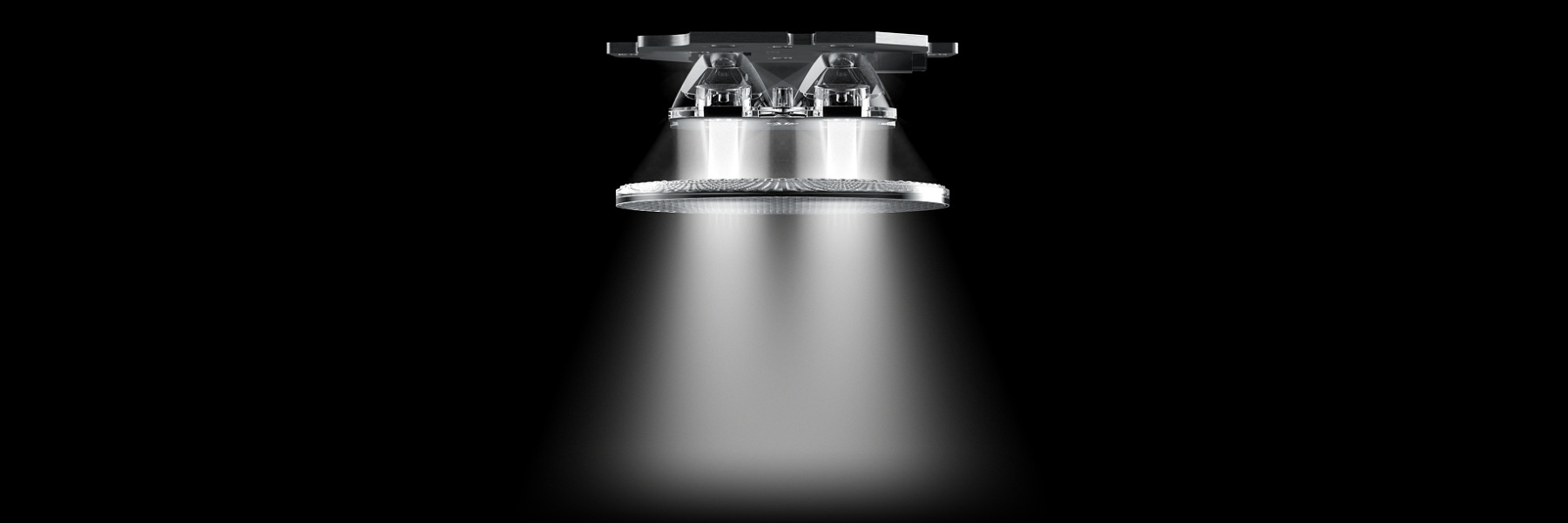

The new Parscan offers best quality of light thanks to next generation Spherolit lenses. The lens system, developed in-house and manufactured by ERCO, generates light beams with optimised symmetry and unsurpassed uniformity, especially for wallwashing. The clear Spherolit lenses enable consistent light colours for high quality illumination.

A collimator focuses the light of each LED onto the interchangeable Spherolit lens. We call the three-dimensional microstructure of the lens spherolites – these project the light precisely onto the target surface. The discreet LEDs of the PCB stand out on the light-emitting surface and create a technical impression that is characteristic of Spherolit technology.

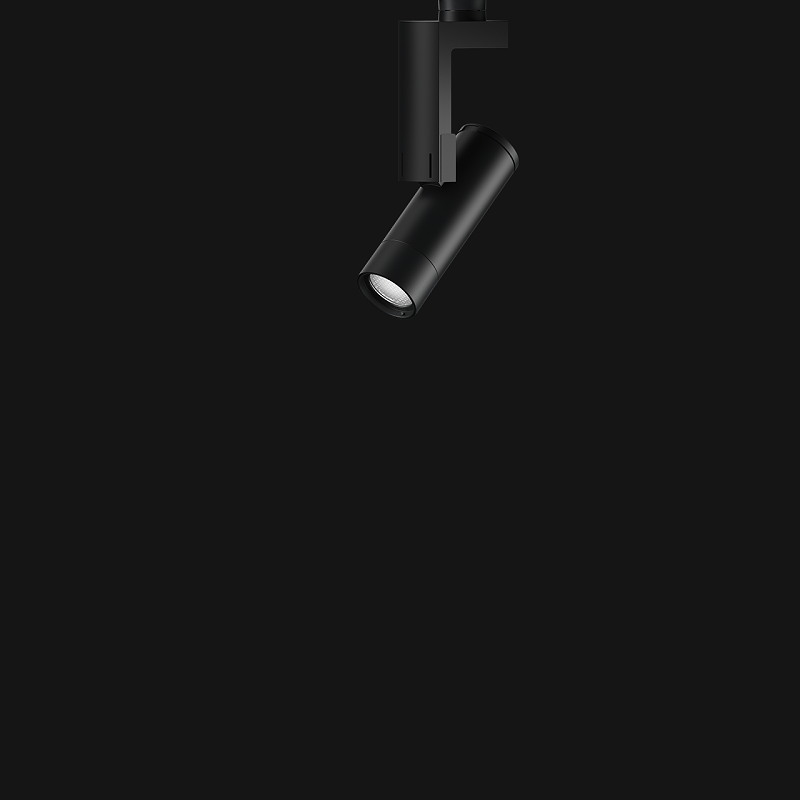

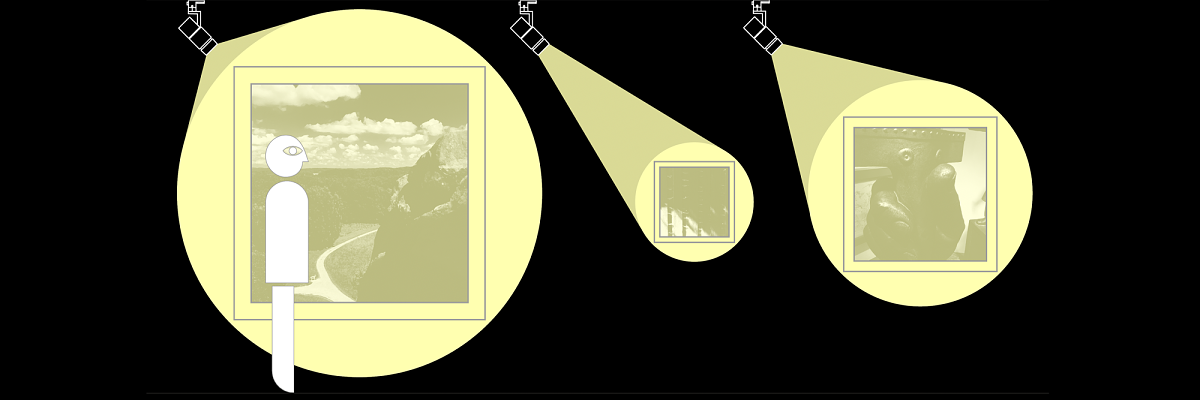

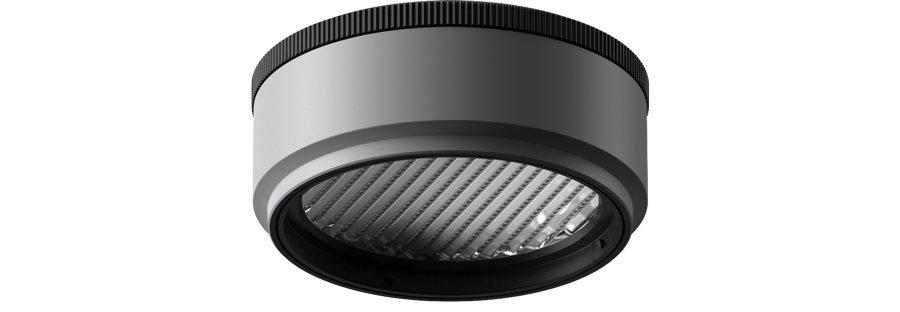

The new Parscan zoom spotlight always presents art in the right light

Now implement your lighting tasks even more flexibly with the new Parscan zoom spotlights. The adjustable zoom optics allow you to infinitely adjust the light beams: Rotationally symmetric light distribution is available with zoom from spot to wide flood. An axially symmetric variant allows adjustment of the oval distribution. Simply transform the new Parscan into a flexible zoom spotlight with the interchangeable zoom optics.

Available as an Add-on Control Unit:

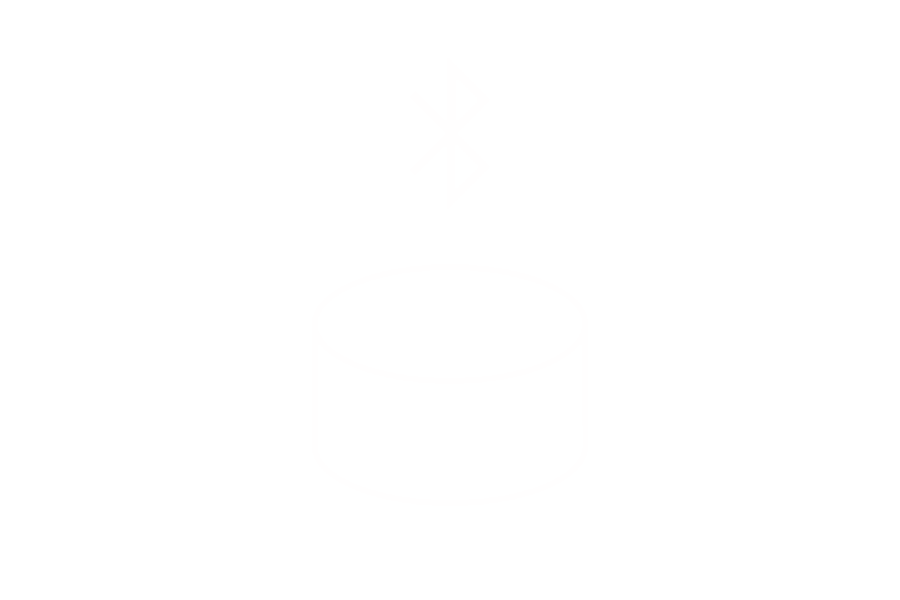

Casambi Bluetooth + DALI via Gateway

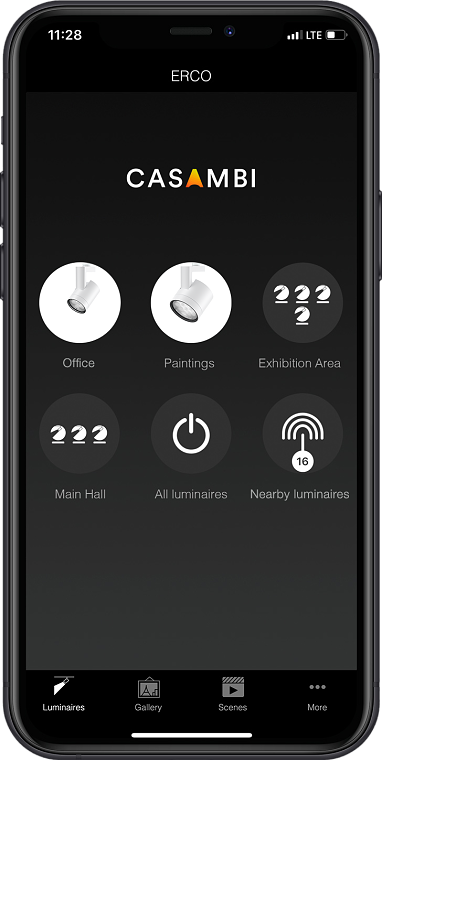

Wireless switching, dimming and programming via Casambi Bluetooth – also for RGBW and tunable white. Connect Casambi Bluetooth luminaires wirelessly to a DALI Gateway (accessory) and control Parscan in this way with your DALI system.

Zigbee 3.0

Wirelessly integrate your luminaires into your building automation via the Zigbee Add-on Control Unit and a gateway.

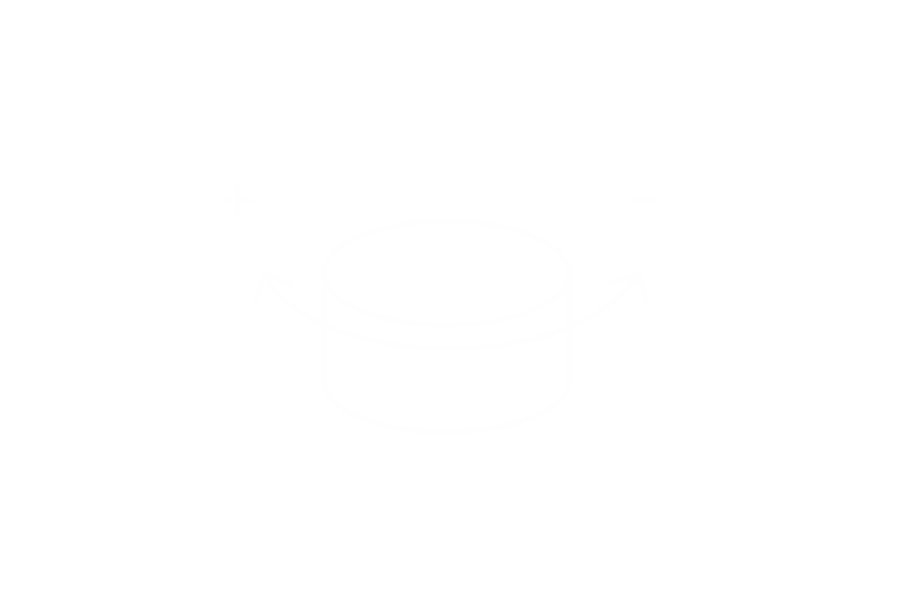

On-board Dim

Dimming via rotary control on the luminaire

Overview of all control modes

Phase
dimmable
DALI
dimmable
Multi-Dim
DALI dimmable
Push Dim
Phase dimmable
On-board
Dim
Casambi
Bluetooth
Zigbee 3.0

Parscan 48V

for Minirail
48V track


(Gateway)

Parscan InTrack

for 220-240V
track


(Multi-Dim)

(Multi-Dim)

Parscan Ontrack

for 220-240V
track

header image

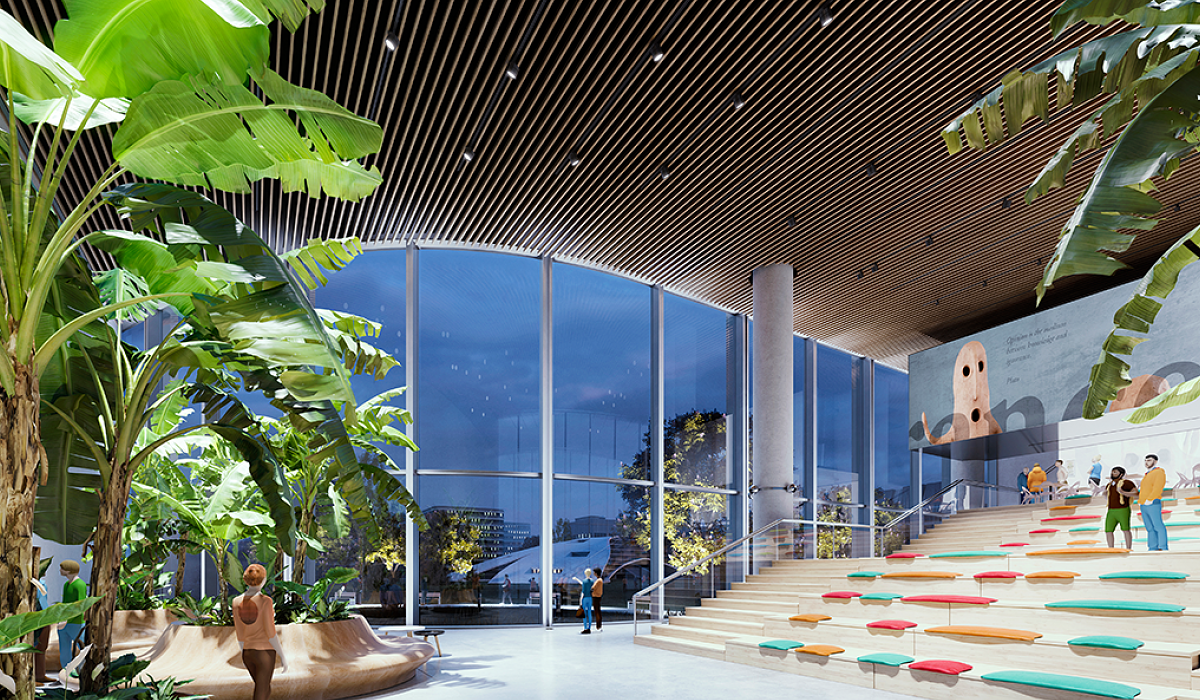

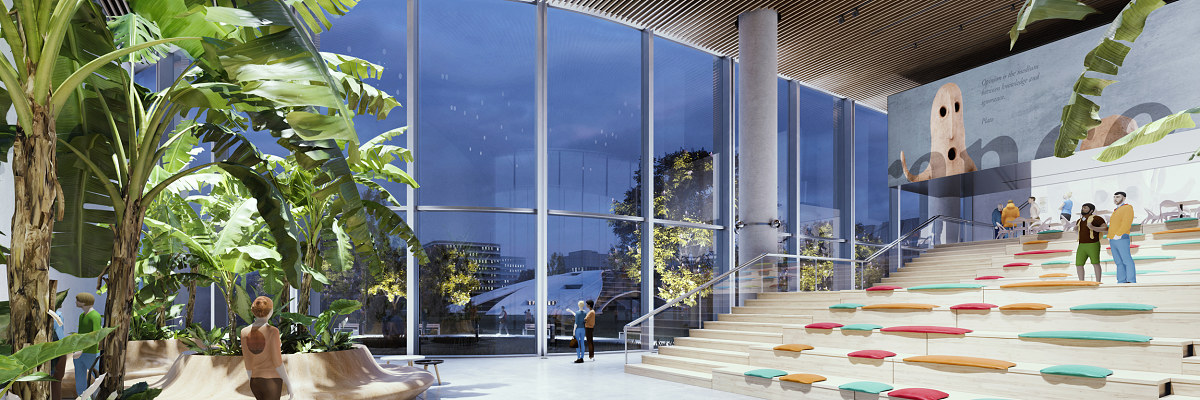

Try Parscan in foyers and atriums

Do you want to impressively illuminate high rooms with ceiling heights of 10m and more? The new Parscan is the perfect solution. Simply contact us and we will provide you with samples.
