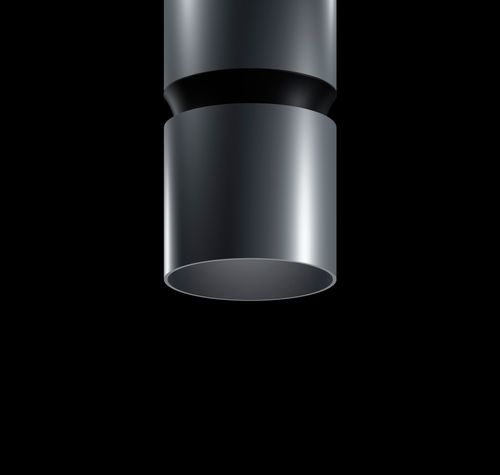

Atrium double focus. Sophisticated light for high rooms

Versatile, high lumen-output lighting technology – for illumination from large heights

Show products

Atrium double focus in the application

Individualize Atrium double focus for your use case

With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Atrium double focus even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

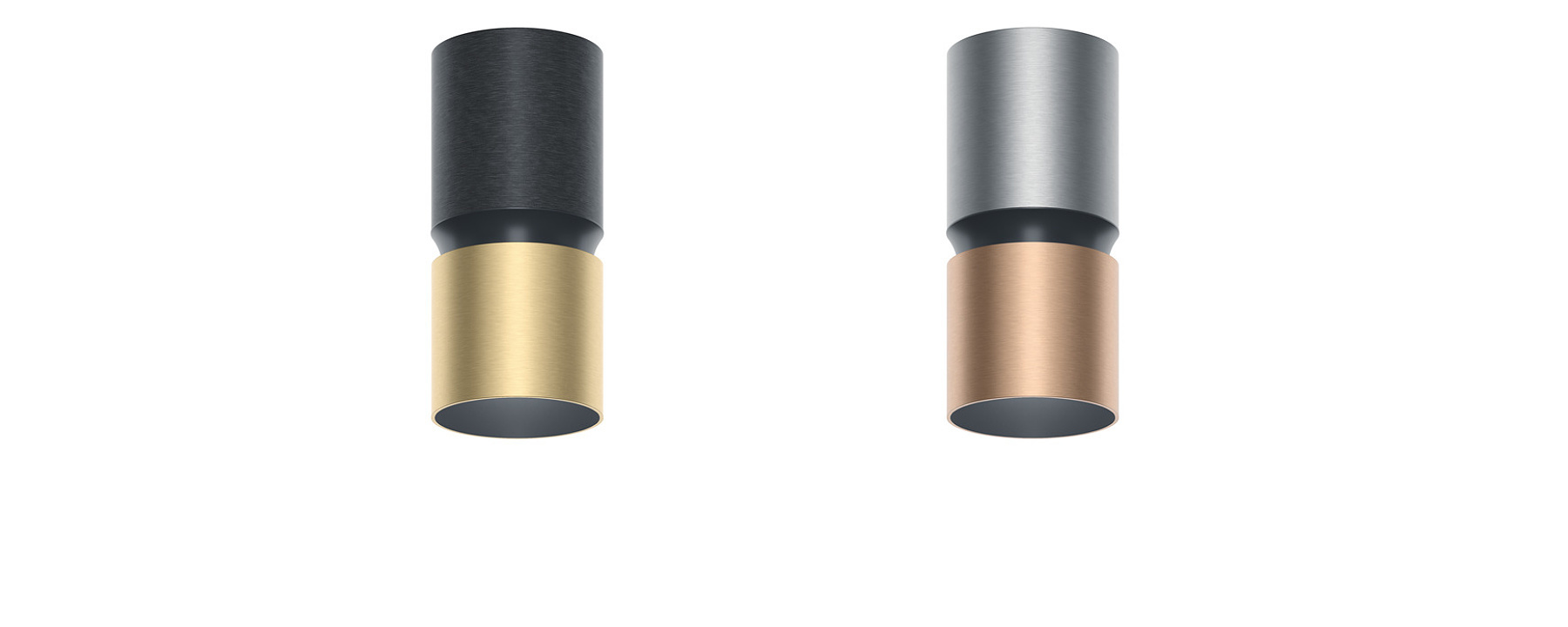

  • Housing: 10,000 further colors

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

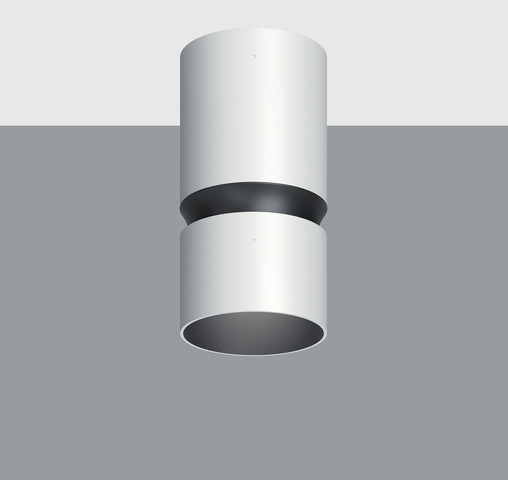

Product features in detail

1

2

3

4

1

ERCO Spherolit lens

  • Light distributions: flood or wide flood

2

ERCO LED-module

  • High-power LEDs: warm white (2700K or 3000K) or neutral white (3500K or 4000K)
  • Collimating lens made of optical polymer

3

Cylinder

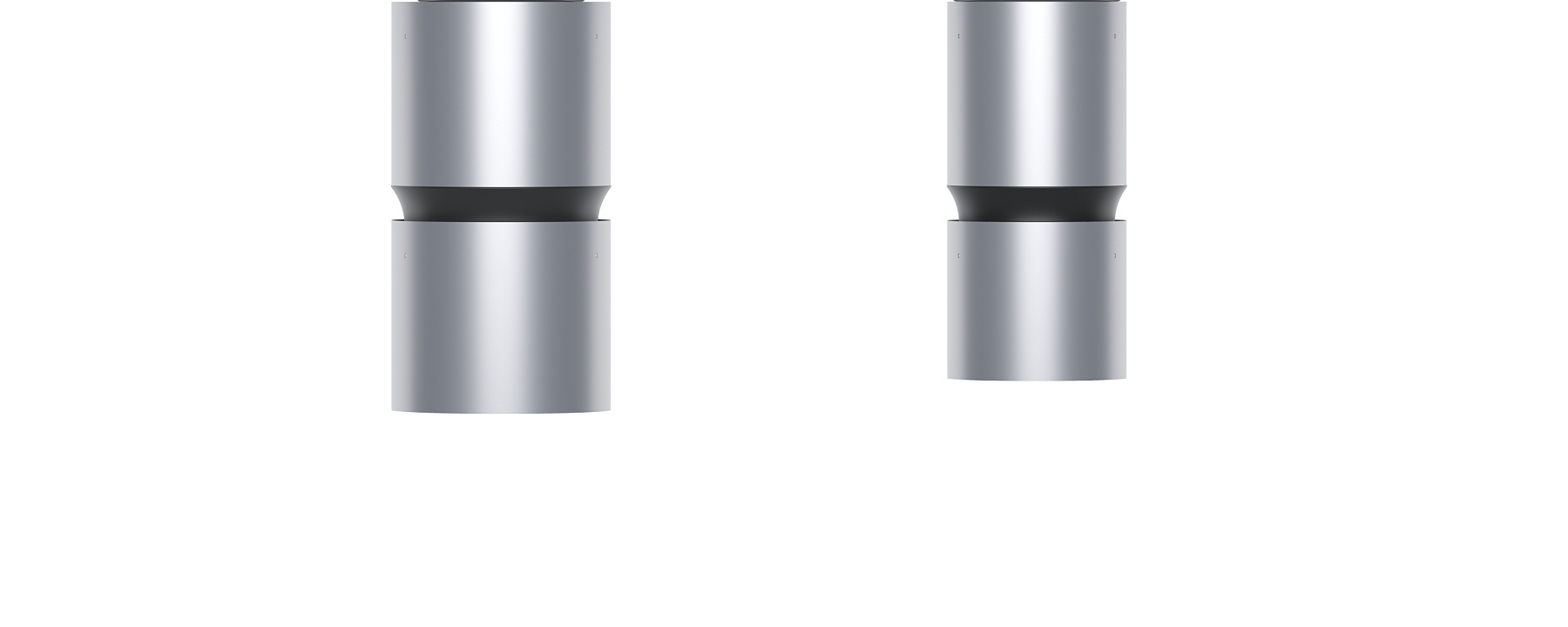

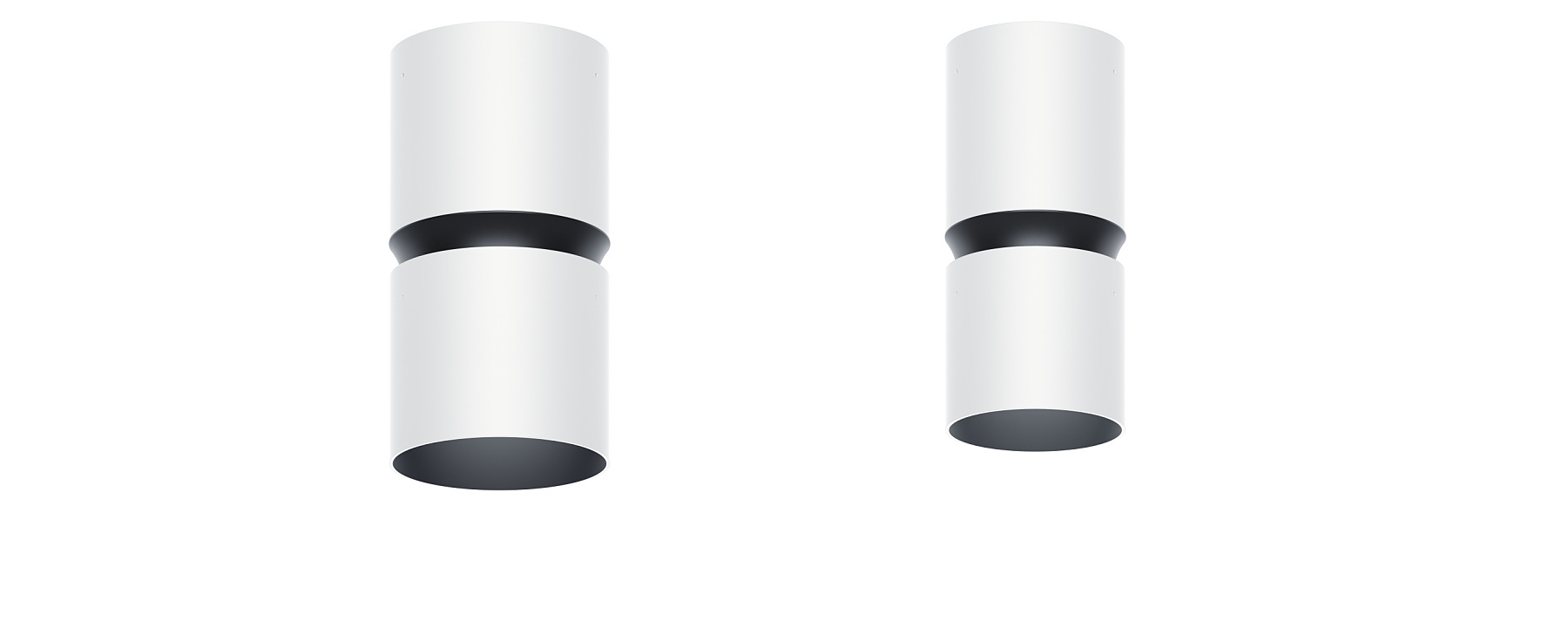

  • White (RAL9002), black or silver
  • Cut-off angle 30° or 40° from horizontal.
  • Aluminum profile, powder-coated, black or matt silver coated inside
  • Cone: polymer, black
  • Ceiling fixture: metal

4

Control gear

  • 0-10V dimmable

Atrium double focus: Light effect and planning aid

Ambient lighting produced by wide beam light distribution.

Lighting tool

Light distribution

Downloads

Request now: Atrium double focus for your next project

We will be happy to provide you with an offer, support you with sampling and be available to answer specific planning questions.
