The art of illuminating

Eclipse sets new standards in lighting technology

The lighting of museums – and other projects with similar requirements such as those in the luxury retail segment – places the highest demands on lighting tools. The interchangeable lens units with darklight lenses not only create a magical impression with only one light point. They also offer precise, uniform light distributions and wide flexibility in the choice of beam characteristics: ranging from miniaturised lighting in confined spaces with Minirail 48V track and wall washing in picture galleries to the display of large exhibits in halls and atria. An extensive range of accessories round off the system – and Eclipse also offers innovative connectivity solutions using wireless standards such as Casambi Bluetooth and Zigbee.

Eclipse in two product ranges

Would you like a very small luminaire on miniaturized track? Are you looking for a luminaire with an elegant Intrack adapter? Would you like to use Eclipse directly in your existing system? To be able to respond ideally to your needs, we have developed Eclipse in two different variants. With the Eclipse 48V and Eclipse versions we offer the right concept for every application.

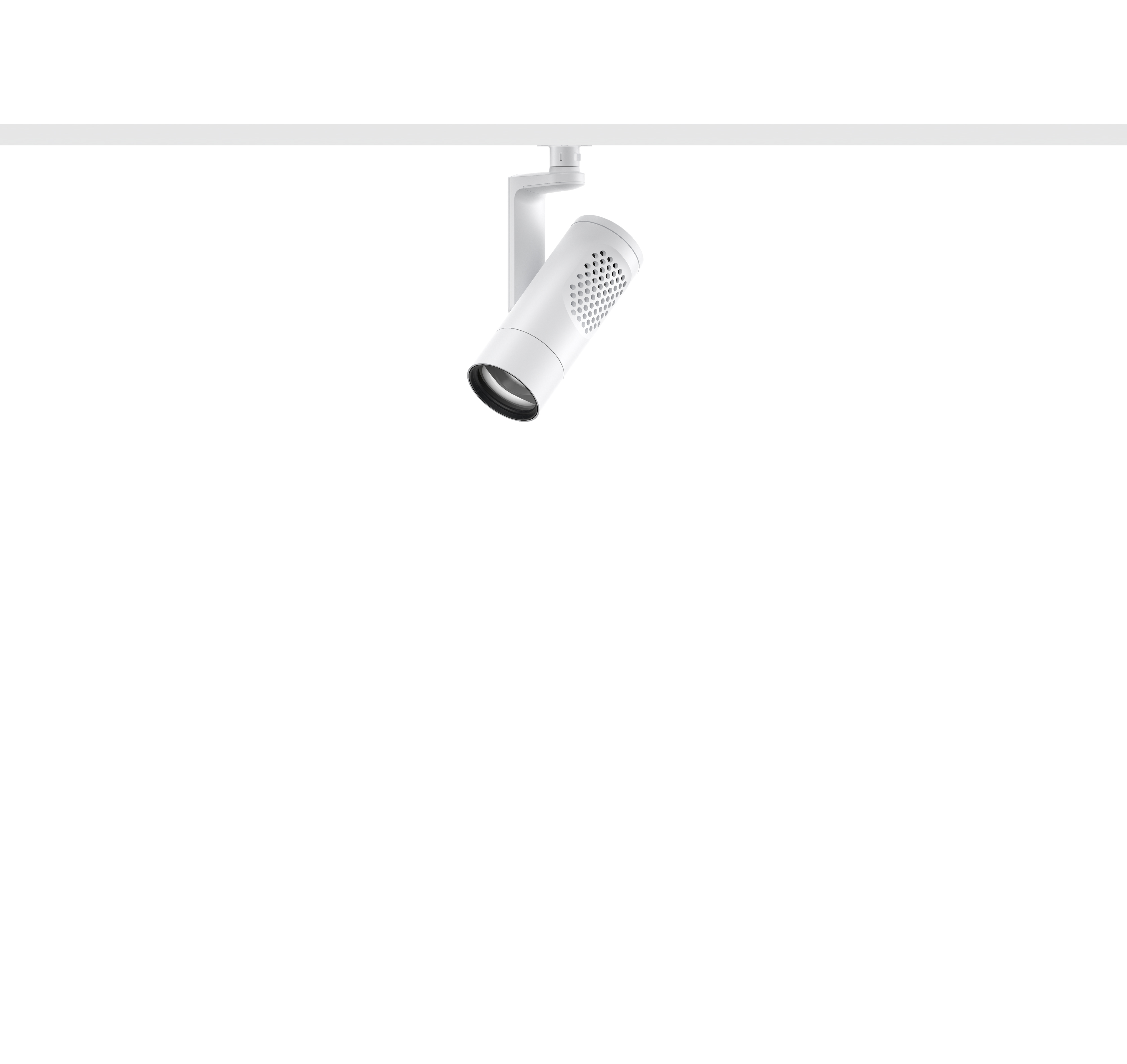

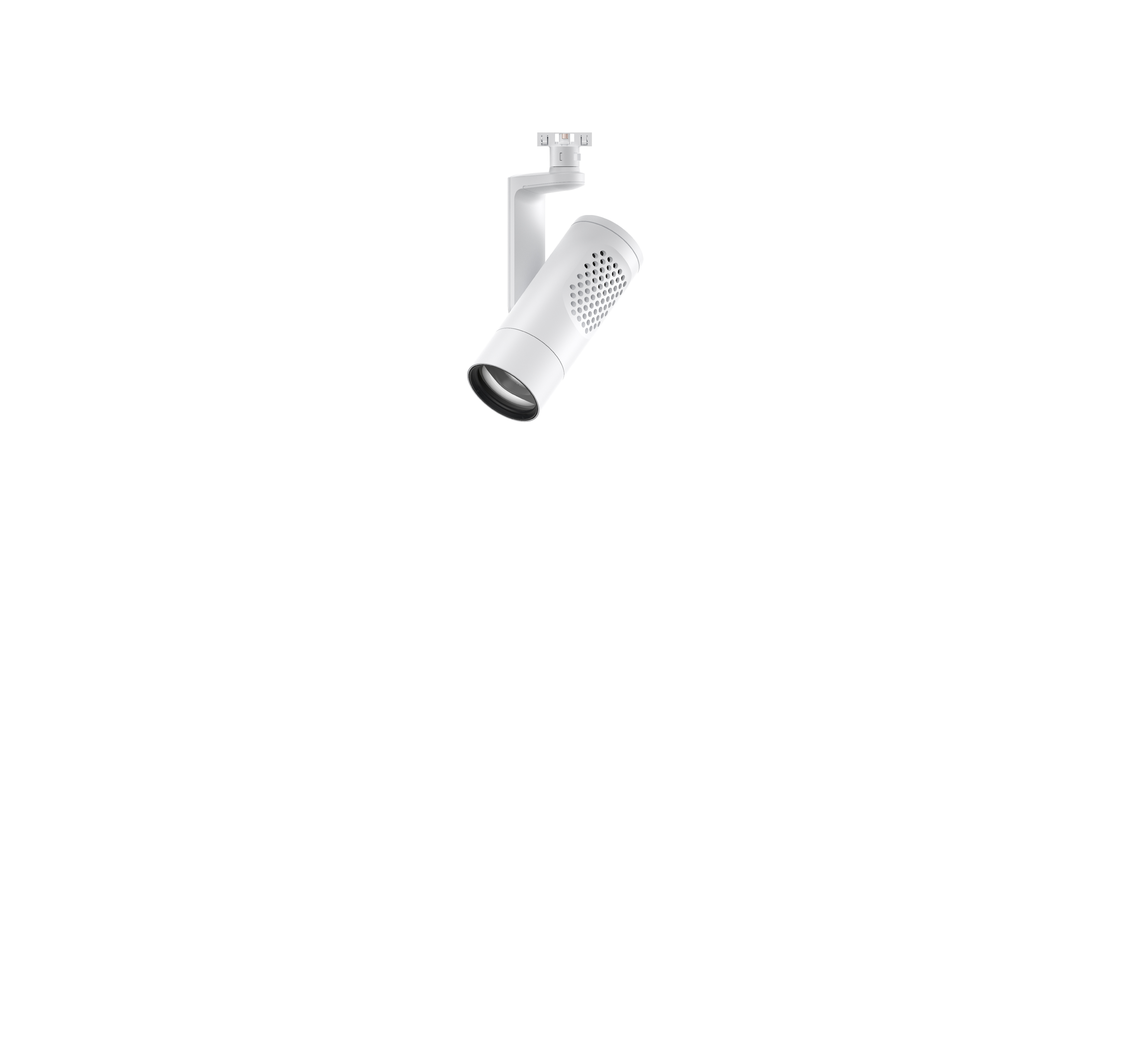

Eclipse 48V – elegant with a small track

Small spotlight dimensions

Can be combined with Minirail

48V track

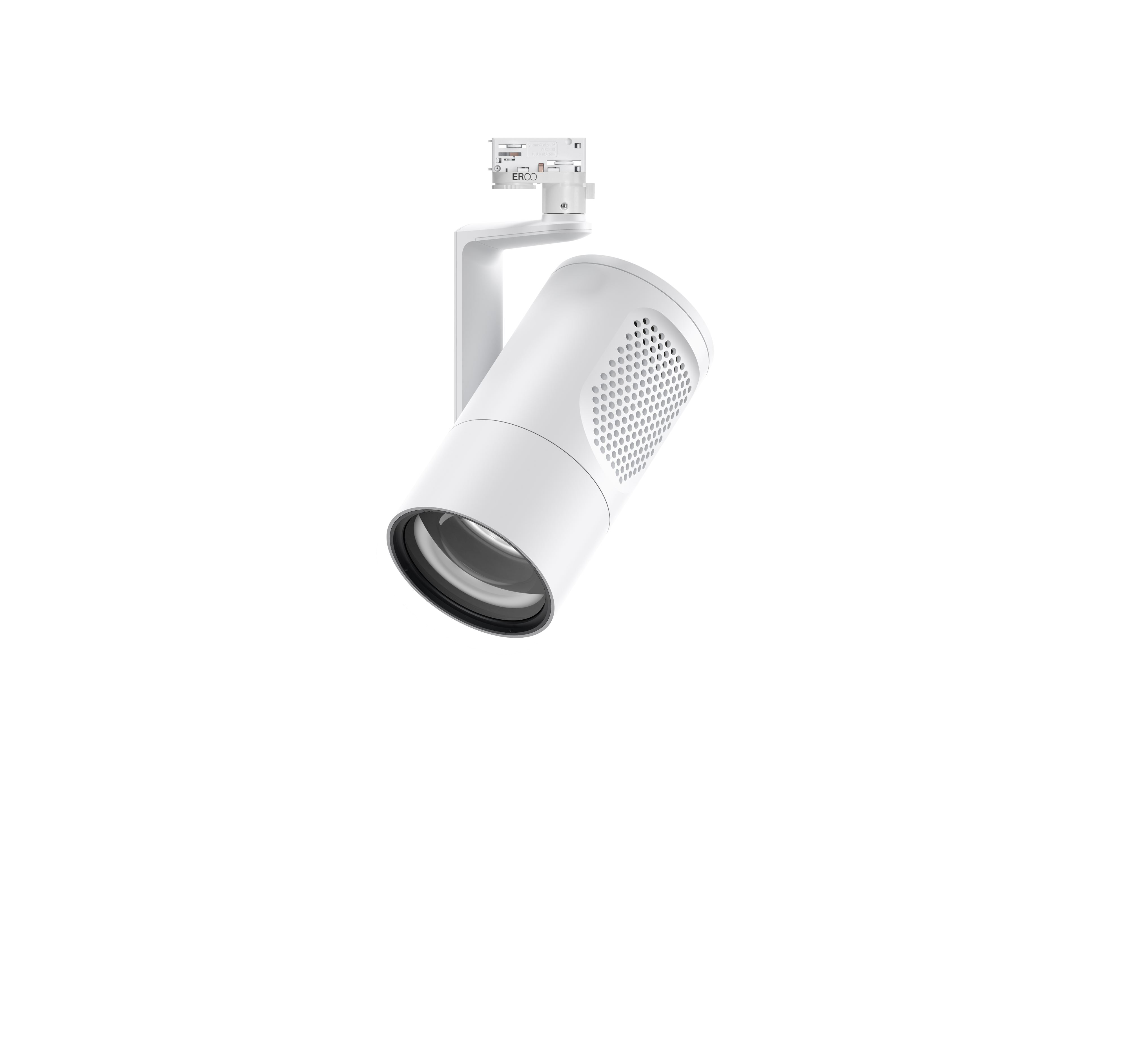

Eclipse – perfect for room heights up to 26ft

Up to 3920lm for high illuminances

Can be combined with 120V track

Extensive accessories available as well as contour spotlights and zoom spotlights


Light for small and large dimensions

Eclipse is available in four sizes – optimized for different applications. To come even closer to our maxim of "light instead of luminaires" we have ­significantly miniaturized the luminaire dimensions of Eclipse size XS to a diameter of only 1 1/4’’.

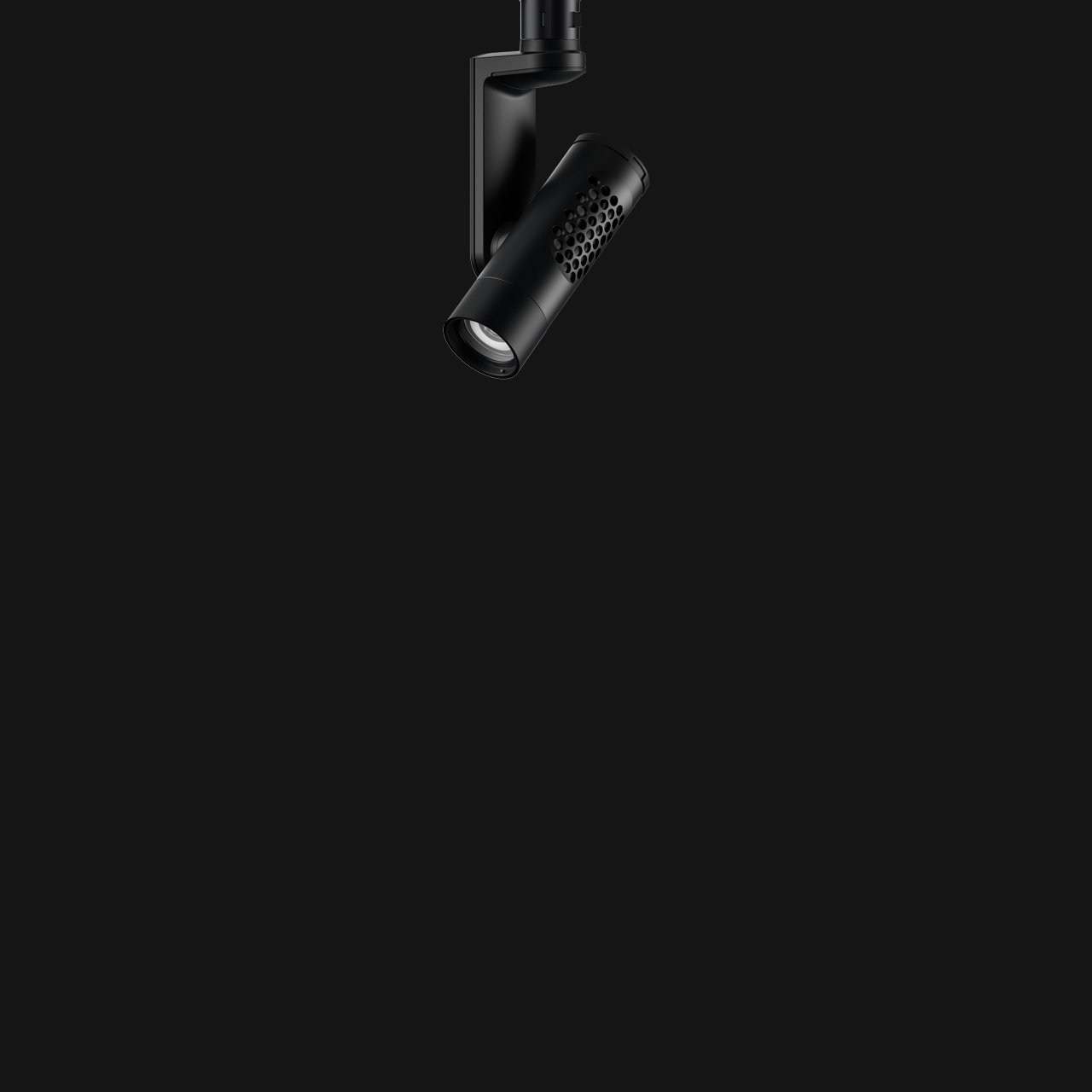

Size XS

Ideal for small exhibits and shop windows as well as for private use at very short distances

  • 1 1/4’’ (32mm)
  • 205lm / 2W – 371lm / 3.1W

Available in the following Eclipse ranges:

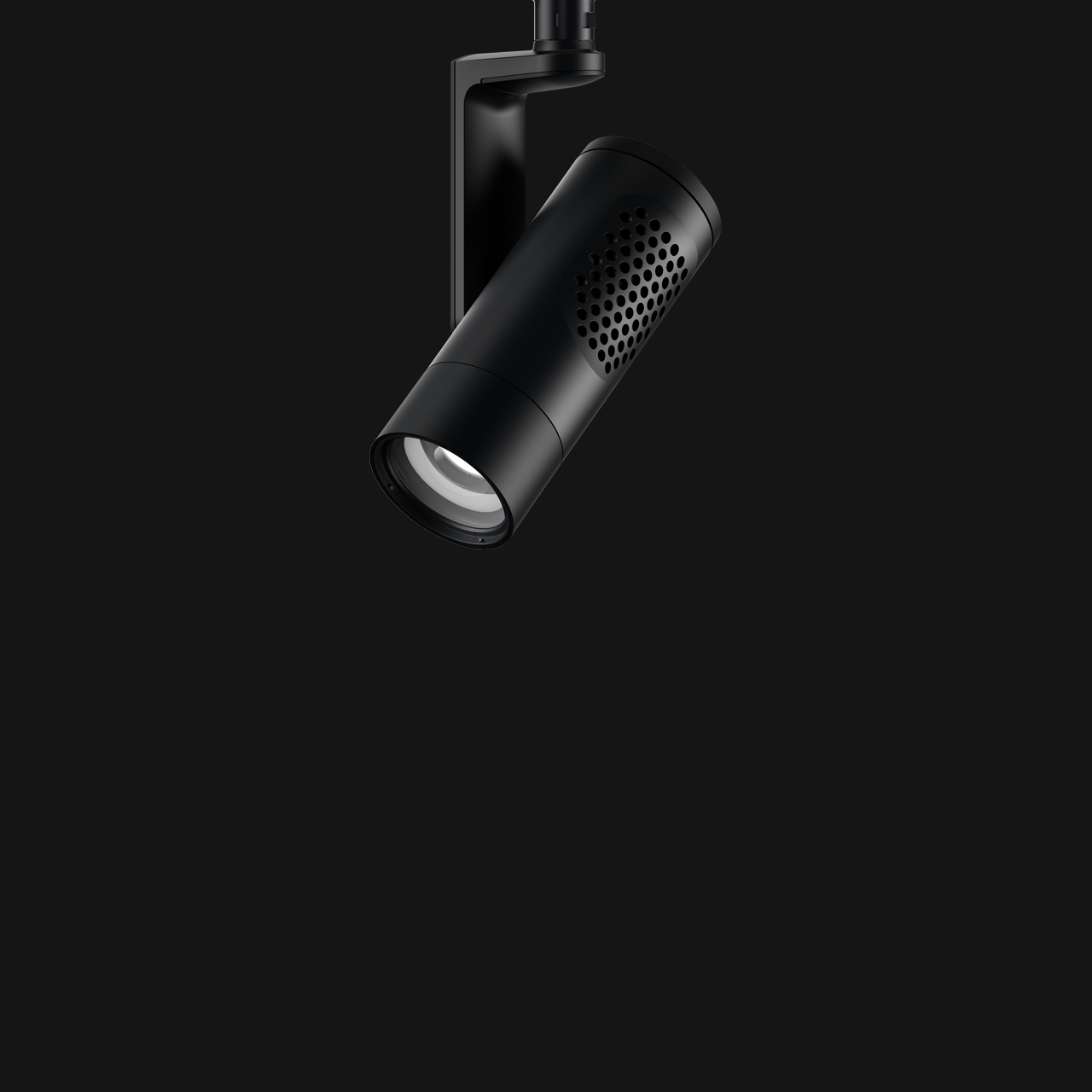

Size S

Perfect for ­sensitive exhibits and room heights up to 10ft

  • 2 3/8’’ (60mm)
  • 286lm / 3W – 1485lm / 12.2W

Available in the following Eclipse ranges:

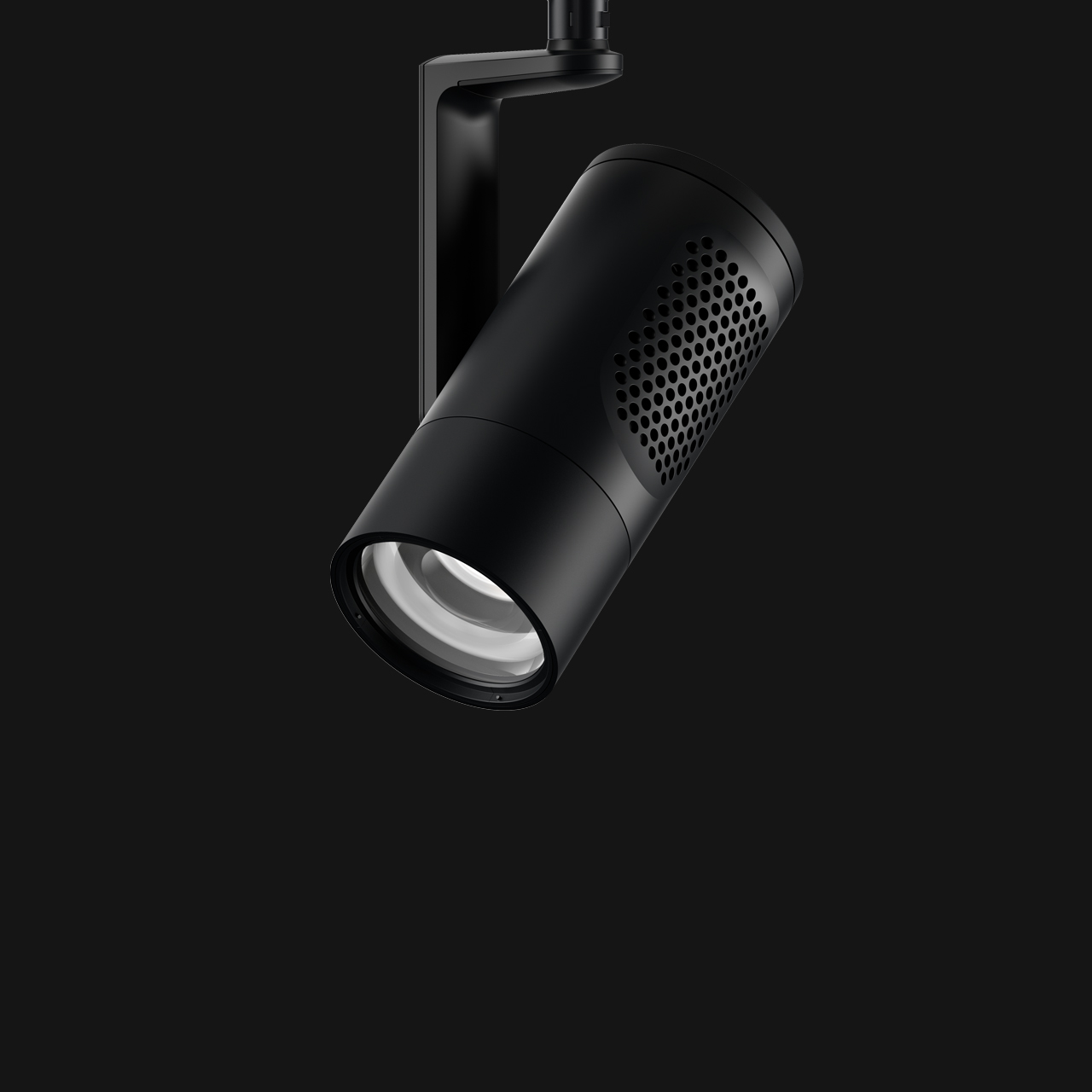

Size M

Ideal for versatile use in museums and shops with room heights up to 16ft

  • 3 5/8’’ (92mm)
  • 357lm / 4.1W – 2598lm / 21.4W

Available in the following Eclipse ranges:

Size L (available from first quarter of 2021)

Ideal for impressive displays of exhibitions with room heights up to 26ft

  • 5 1/6’’ (130mm)
  • 1071lm / 12.4W – 3920lm / 30.1W

Available in the following Eclipse ranges:

  1. XS
  2. S
  3. M
  4. L

Eclipse 48V

for Minirail 48V track

for 220-240V track

Eclipse 120V

for 220-240V track

trans trans Multi-Dim
DALI dimmable
Push Dim
Trailing edge dimmable
Zigbee 3.0

Eclipse 48V

for Minirail 48V track


for 220-240V track

Eclipse 120V

for 220-240V track

Implement your project with Eclipse

We are glad to help with your lighting design

Select a service:

Your contact data:

free of charge and without obligation

Your data will be handled confidentially. For further information see Data protection declaration.

Magical darklight lens for highest visual comfort

Eclipse projects light with its darklight lens as precisely as a camera lens focuses light. ERCO thus sets new standards in architectural lighting. The interchangeable darklight lens offers lighting designers maximum flexibility and observers maximum visual comfort.

  • Magical effect due to uniform light emission surface
  • The optical cut-off of up to 60° ensures maximum visual comfort and glare-free light enjoyment
  • Precise light distributions for point-precise illuminances with no spill light

Everything from accenting to wallwashing

In-house developed optics exploit the full potential of efficiency and quality of light. The lenses guide the light with maximum precision, precisely defined light beams and high illuminances onto the target surface. From crisp-edged accen-tuation to uniform wallwashing – the complete bandwidth with just one luminaire range.

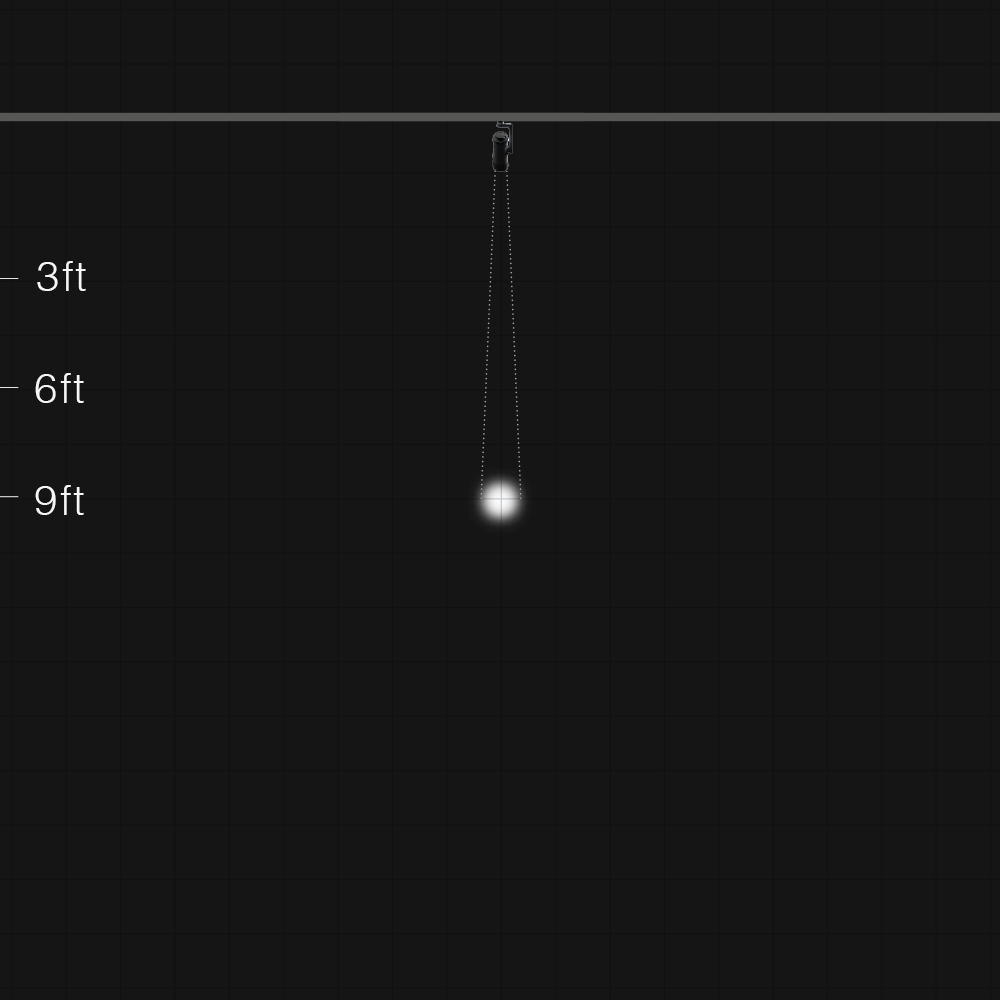

Narrow Spot 5°

0’9’’ at illumination distance of 9ft

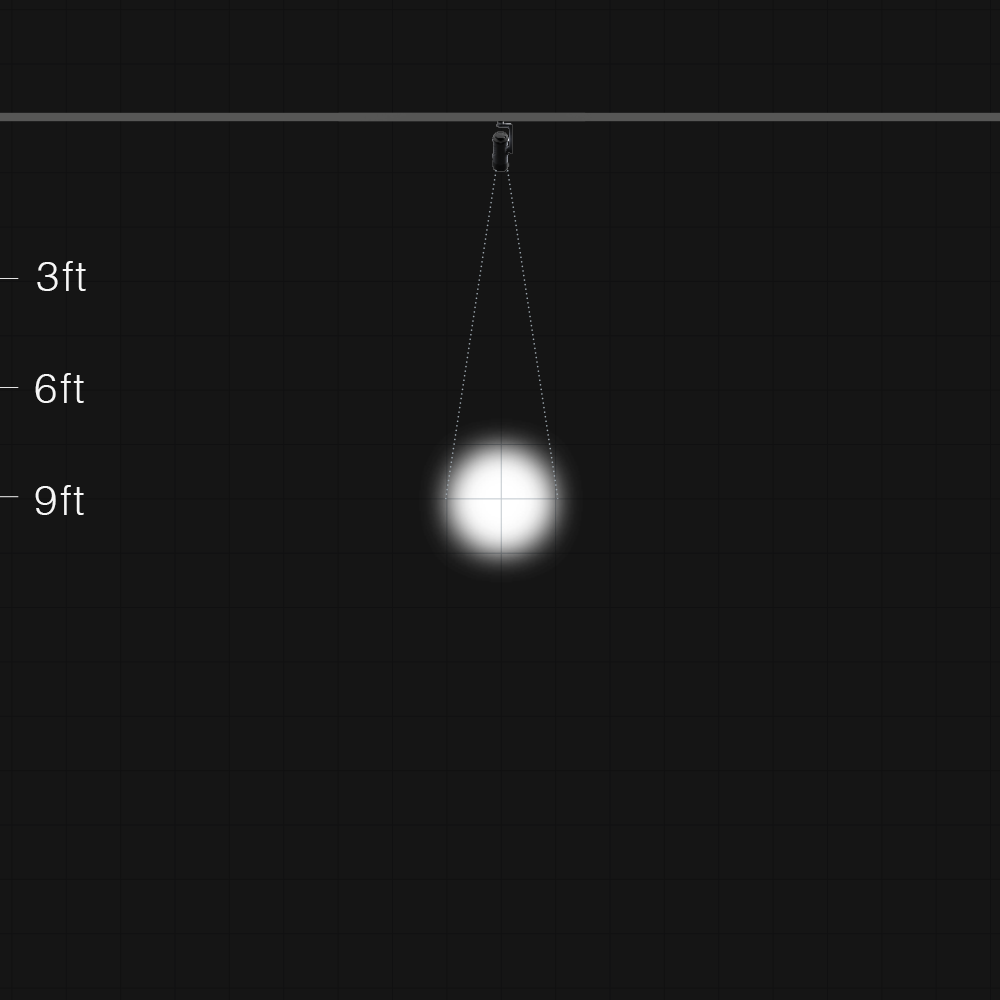

Spot 18°

3’0’’ at illumination distance of 9ft

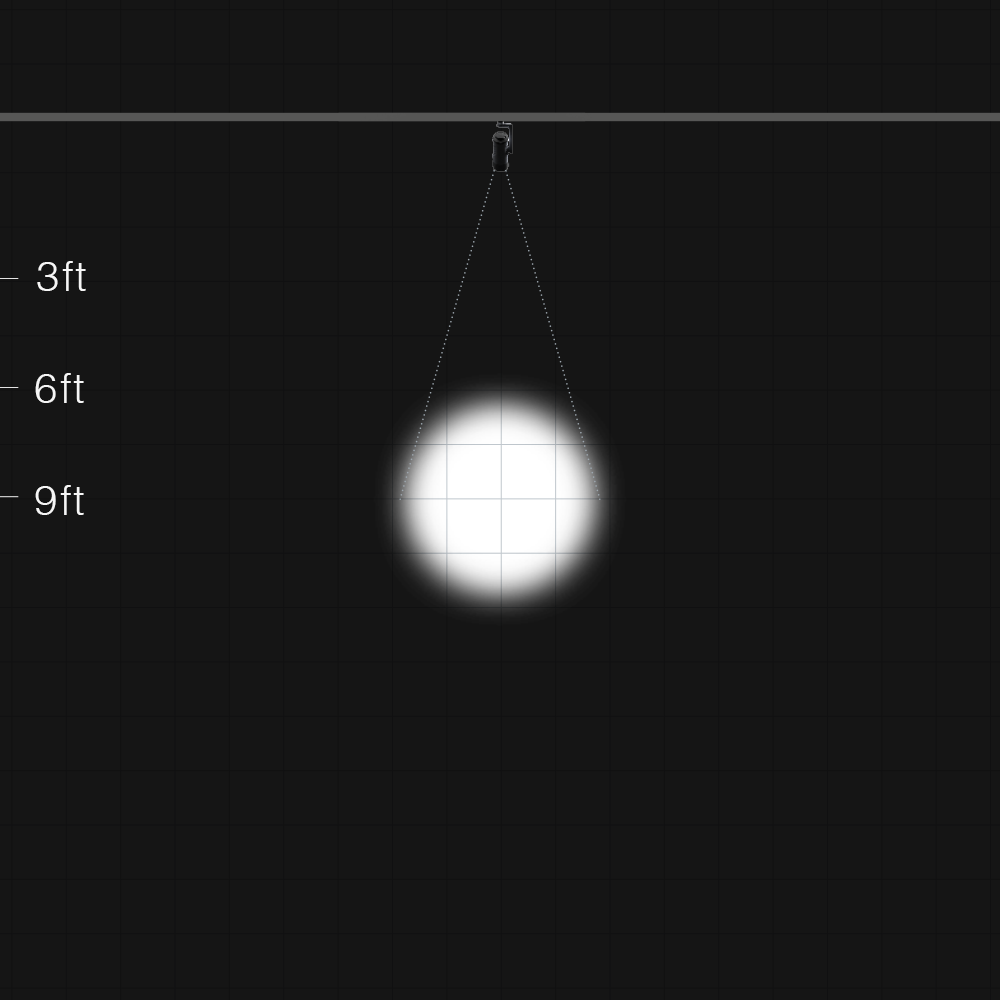

Flood 32°

4’8’’ at illumination distance of 9ft

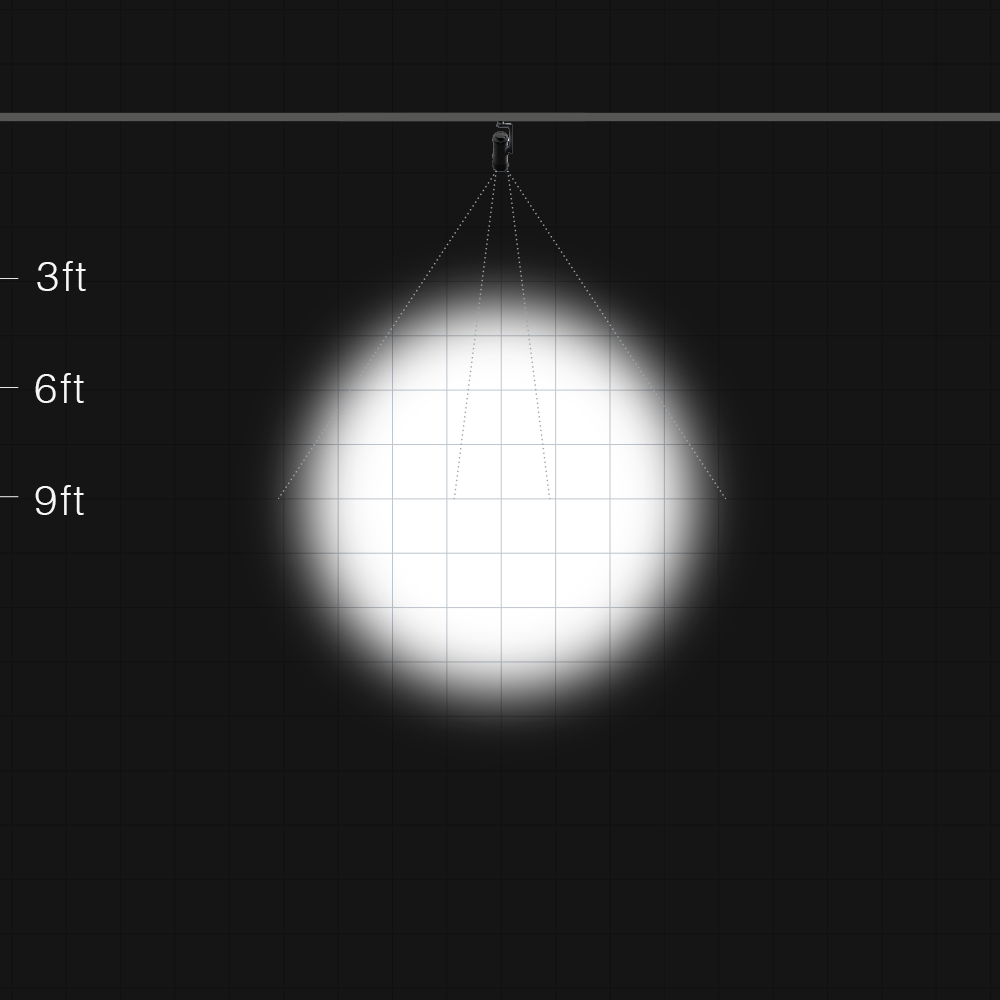

Zoom Spot 17°-67°

2’8’’-11’11’’ at illumination distance of 9ft

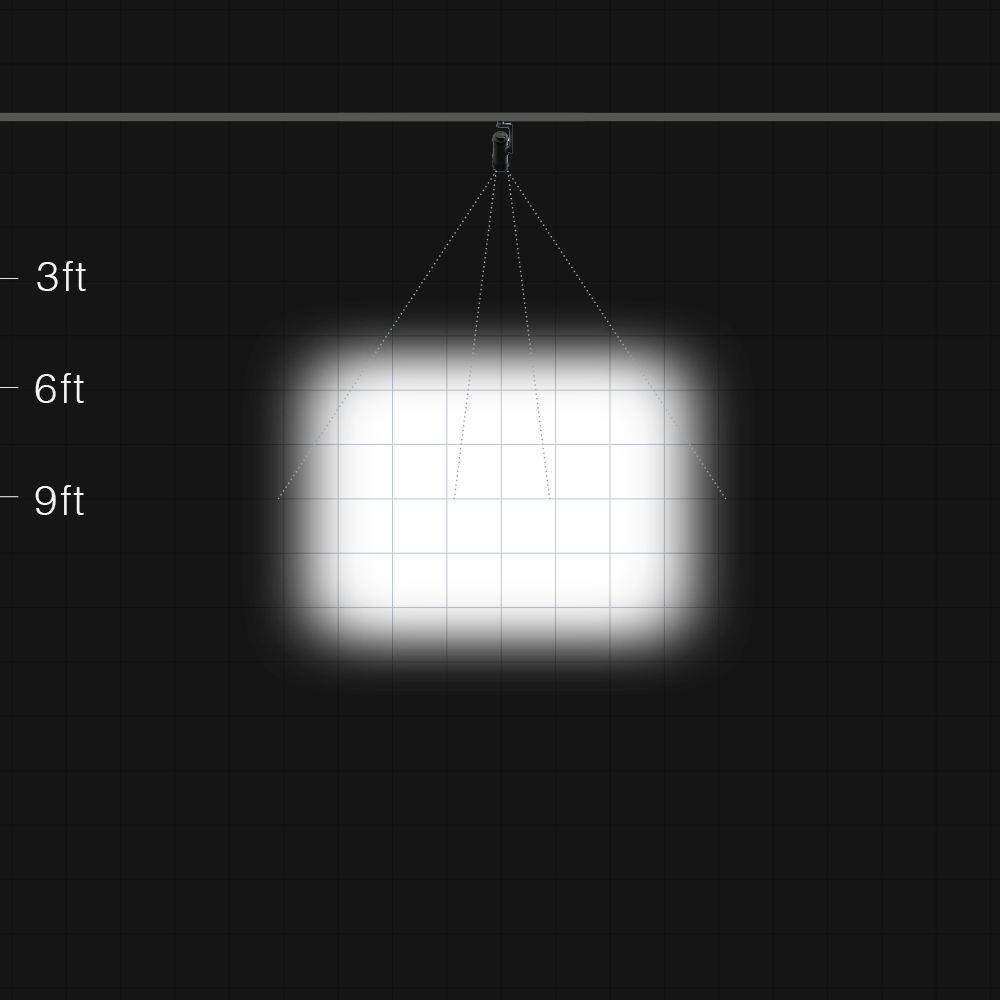

Zoom oval 25° x 65° – 62° x 68°

11’0’’ x 4’4’’ - 12’2’’ x 10’10’’ at illumination distance of 9ft

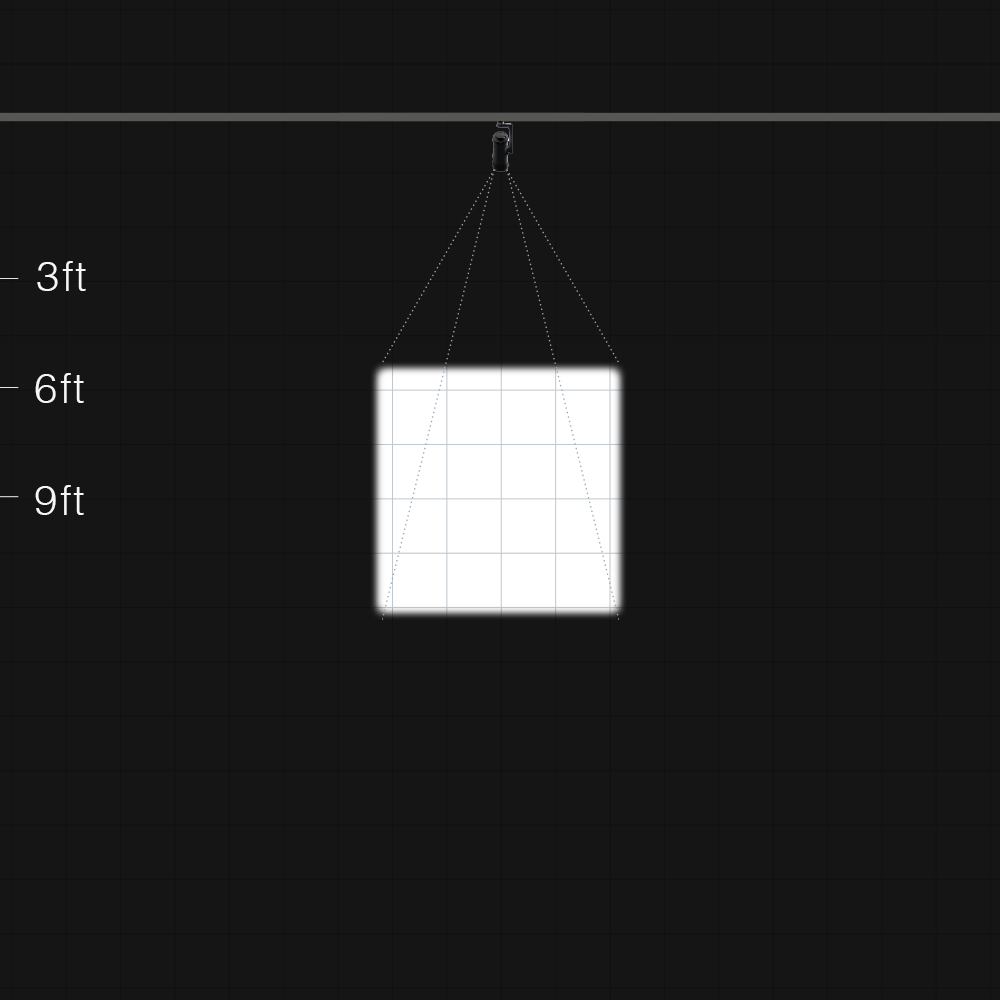

Framing 40°

7’’ at illumination distance of 9ft

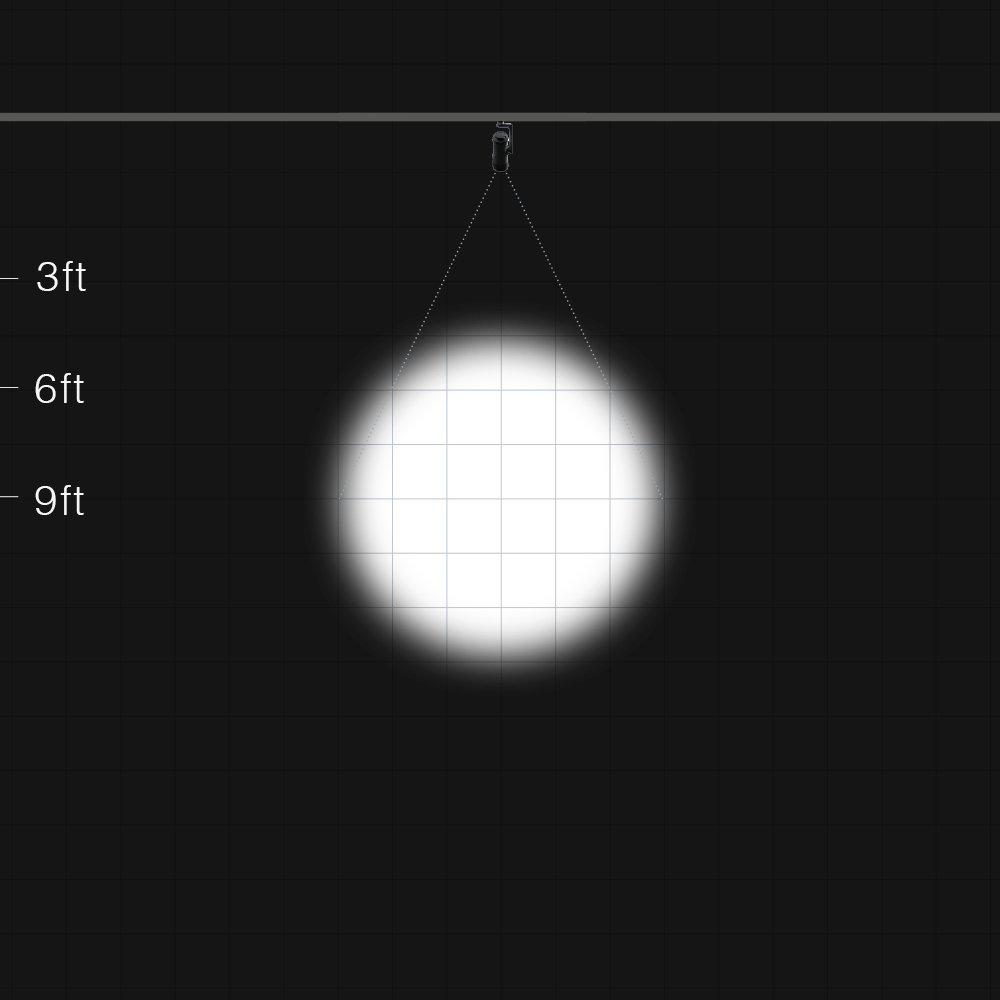

Wide flood 51°

8’2’’ at illumination distance of 9ft

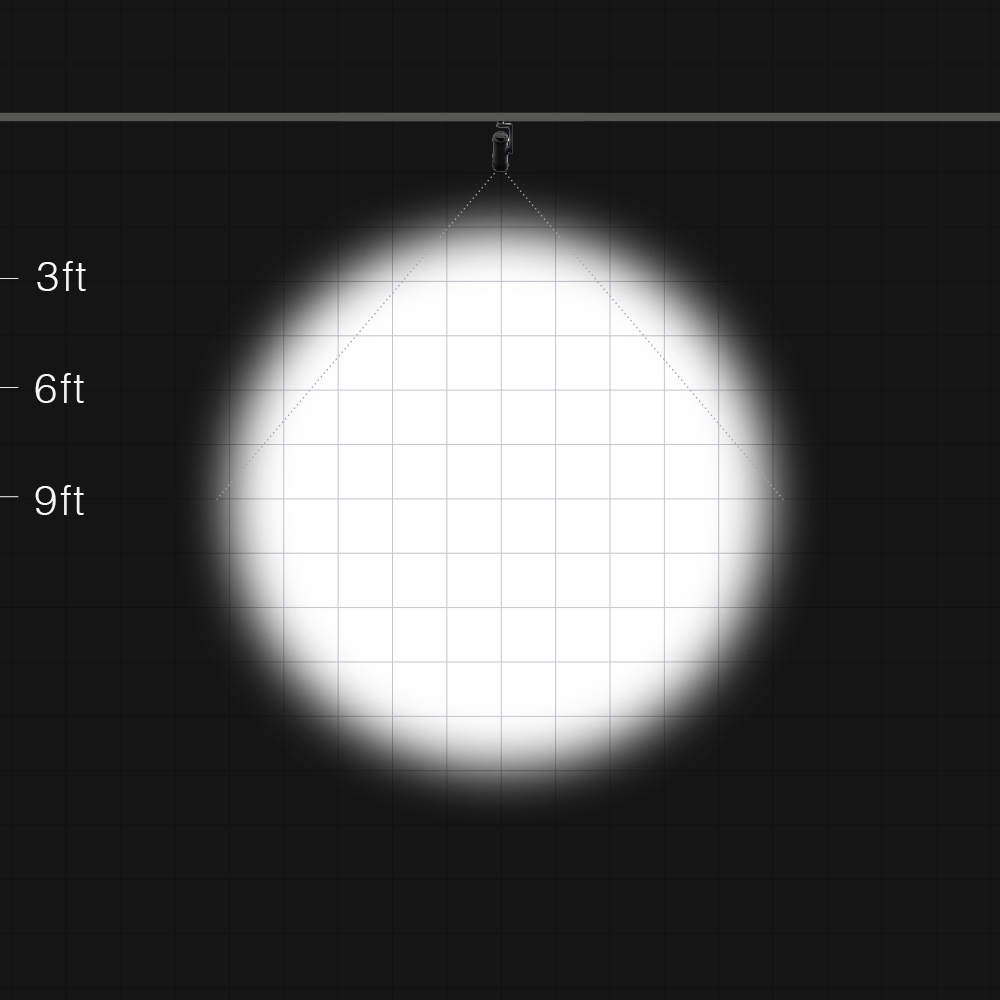

Extra wide flood 79°

16’6’’ at illumination distance of 9ft

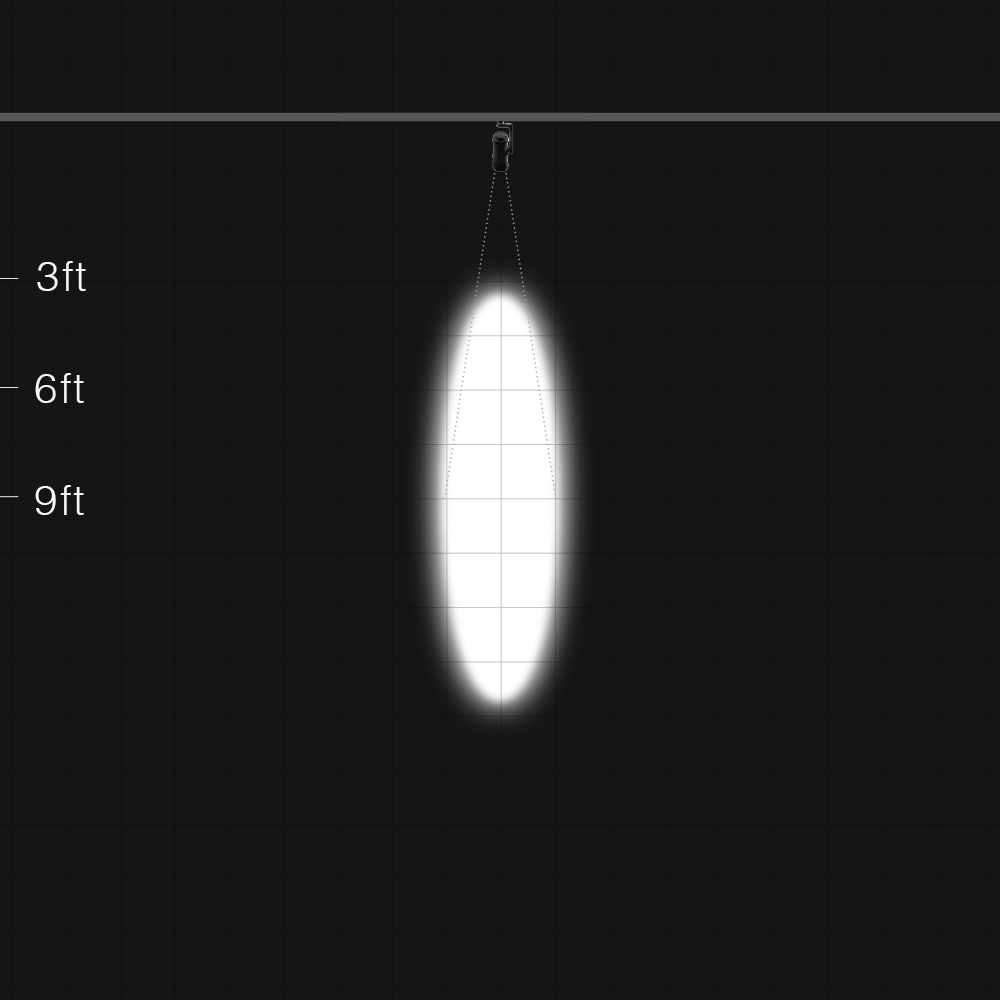

Oval flood 19° x 63°

2’8’’x 11’8’’ at illumination distance of 9ft

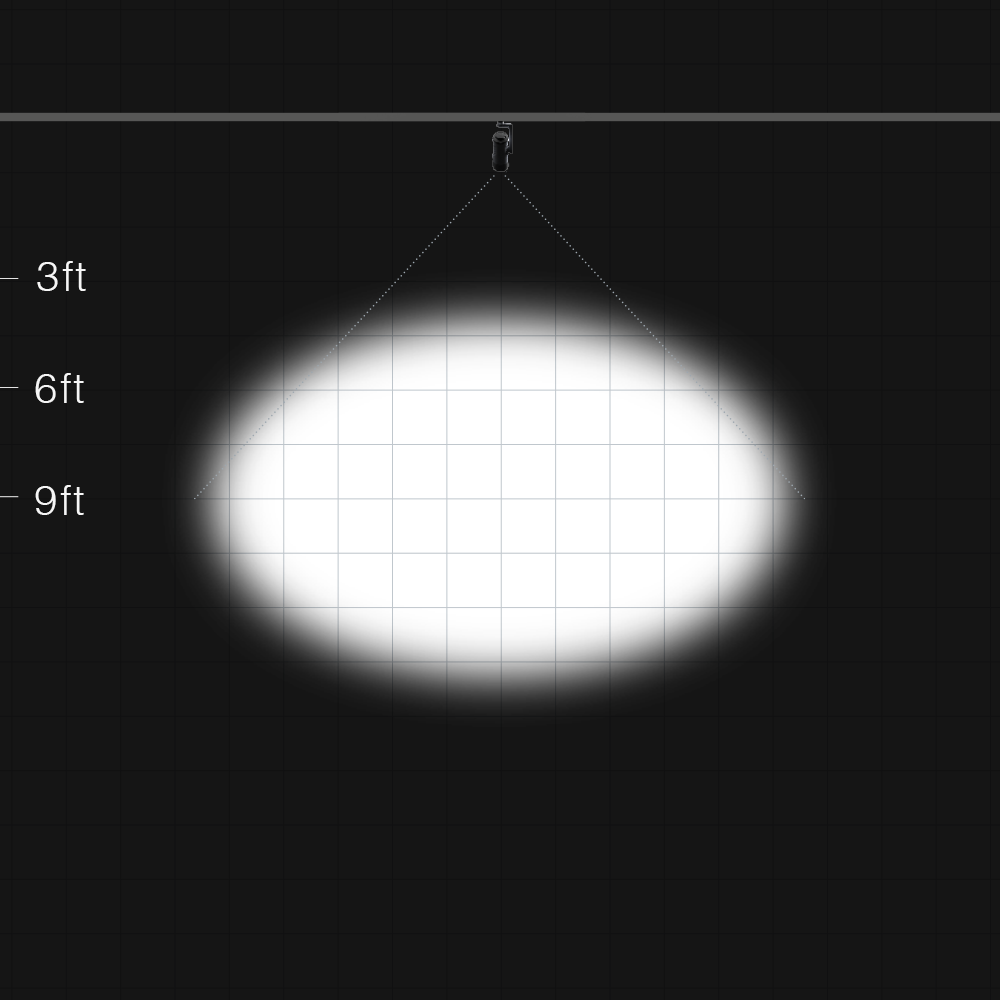

Oval wide flood 55° x 83°

15’11’’ x 9’4’’ at illumination distance of 9ft

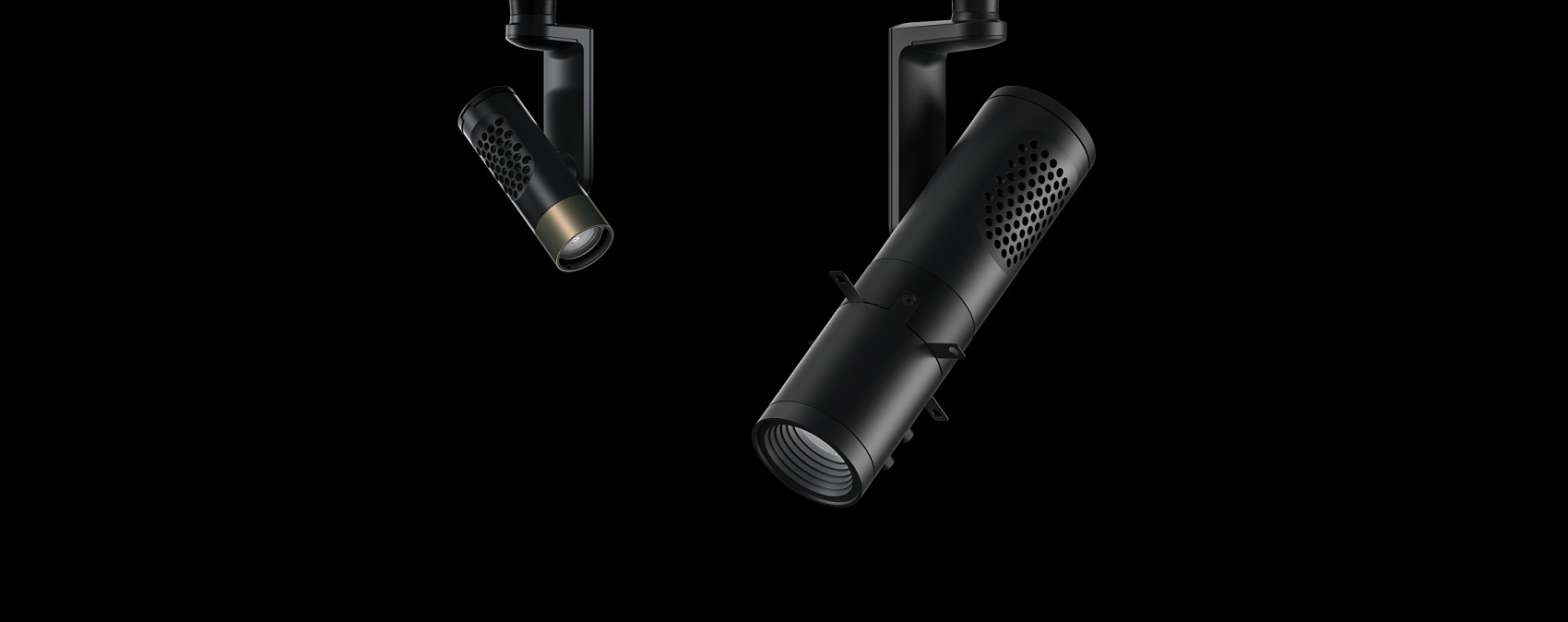

The best contour spotlight with larger imaging area

The new Eclipse contour spotlight generates a very sharply defined light beam. As a result, fascinating effects can be created where crisply illuminated pictures appear to glow from within – ideal for museums and galleries.

This distinguishes our Eclipse contour spotlights

Even larger imaging area

The double projection lens produces a very small focal distance and thus an even larger projection image than previous contour spotlights.

Light-tight housing

Thanks to the closed housing, no unintentional reflections are created in the room and towards the observer.

Sharp contours

Eclipse achieves sharp contours especially with larger artwork.

Maximum efficiency

Eclipse achieves high illuminance even with small luminaire sizes. To crisply illuminate a picture with 50lx from a distance of 4m, you only need 8.2W in size S.

Simple handling

The intuitive pulling out of the framing attachment enlarges the projected area. In addition, the complete luminaire head can be rotated.

Tunable white and RGBW

With tunable white and RGBW you can even individually adjust the color temperature to match the artwork or create scenographic concepts with 16 million colors.

Also available as accessories: contour spotlights

With the contour spotlight attachment as an accessory, a spotlight can be converted into a flexible contour spotlight at any time.

Creating size and brightness with wallwashing

ERCO has designed Eclipse wallwashers for maximum demands regarding outstanding quality of light. Also noteworthy is their new lighting design flexibility: both luminaire spacing and distance to the wall can vary – perfect for projects with challenging conditions.

  • Light starts very high up on the ceiling
  • Horizontally: very high illuminance uniformity
  • Vertical uniformity enables the wall to appear bright over the entire height
  • Large luminaire spacing reduces the investment costs
  • Perfect visual comfort due to very good glare control
  • Modifiable colors also possible with tunable white or RGBW

Variable like never before!

With a room height of 20ft, the ideal luminaire spacing is 6 1/2ft. With Eclipse this can vary by +/- 50% and thus between 3ft and 10ft. This enables you to remain flexible in your planning. Taking into account the maximum possible spacing, you reduce your investment costs compared to normal wallwashers.

Variable wall distance

Are you confronted with challenging spatial conditions? No problem: with a room height of 20ft for example you can install Eclipse wallwashers at a distance of 5ft from the wall instead of 6 1/2ft, meaning 25% closer than before.

Select from:

  • 6 spectra from 2700K to 4000K and up to CRI 97 and a further 24 spectra via conversion filter
  • Tunable white from 2700K to 7500K
  • RGBW with over 16 million colours

Lenses and filters as accessories:

  • +/- shift of colour temperature
  • Optimised colour rendering ideal for museums and shops

6 light spectra for any application

Eclipse gives you the perfect combination of light colour and colour rendering. 3000K CRI 97 is the right choice for the perfect rendering of colours. Maximum energy efficiency is achieved with 4000K CRI 82. Four conversion filters create 24 additional spectra from six LED light colours.

Nuanced displays with tunable white

Tunable white enables you to perfectly illuminate art and merchandise and ideally emphasise colours. Warm white light colours are suitable for materials with warm tones whilst neutral or cool white light colours are ideal for cool materials.

RGBW luminaires for colored lighting design

LED-RGBW luminaires enable selection from over 16 million colours and pastel tones. A special optic achieves completely uniform, colour shade-free mixing – ideal for the coloured display of exhibits and merchandise.

Need any further information?

You can contact your regional contact partner via:

You can gladly send us an e-mail or ask your question here

Your data will be handled confidentially. For further information see Data protection declaration.

Light control in the digital age

Decide for yourself: from simple switching to the wireless programming of light scenes with Casambi Bluetooth or Zigbee – Eclipse gives you the complete range of options. Multi Dim enables you to dim Eclipse with DALI, Push Dim or via phase. On-board Dim gives you the opportunity to additionally adjust the bright-ness on the spotlight yourself, for example to set illuminance to a fixed value with sensitive works of art. What do you prefer?

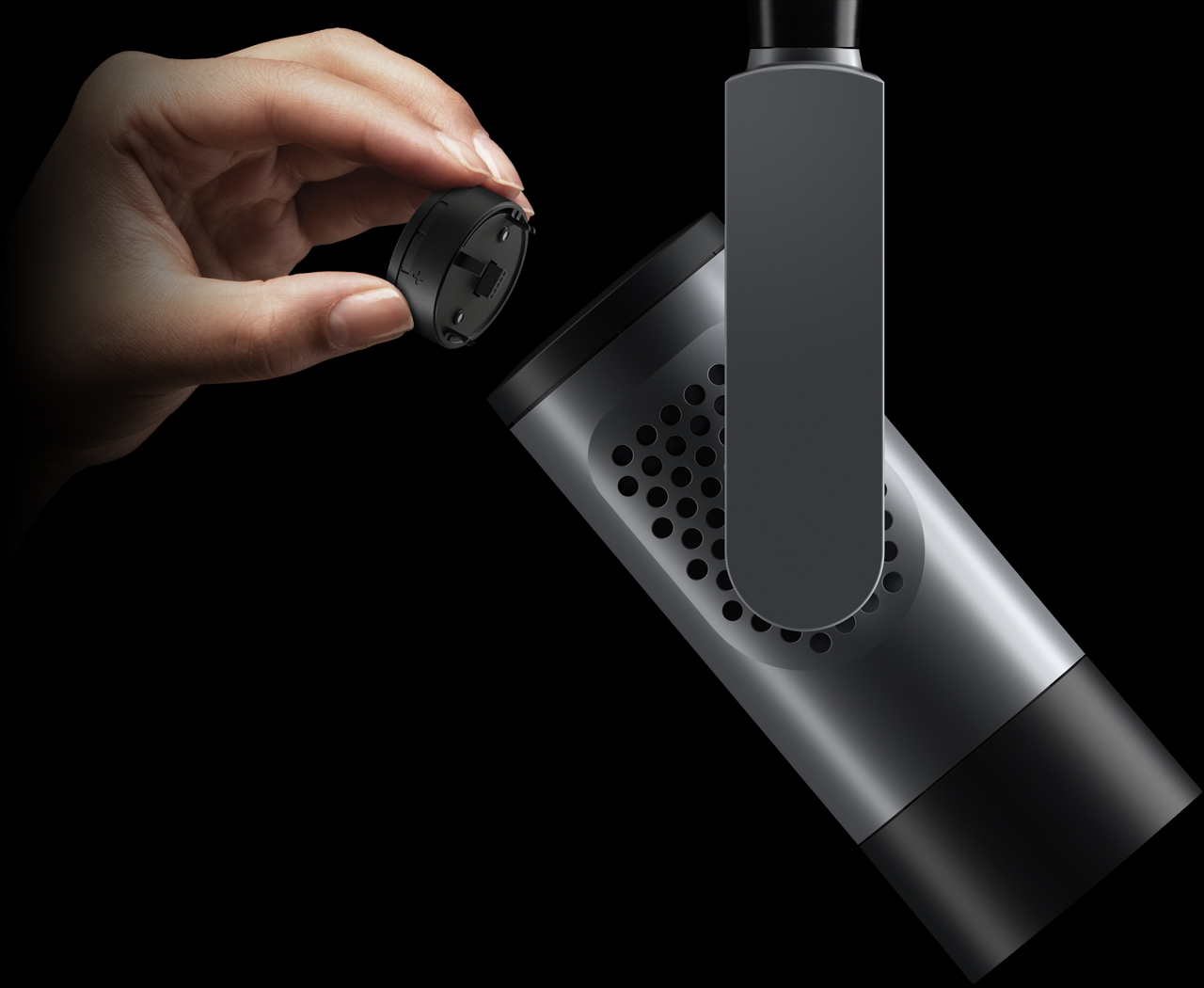

Easy upgrading: Add-on
control unit for 48V

Change the control mode at any time with the attachable add-on control unit.

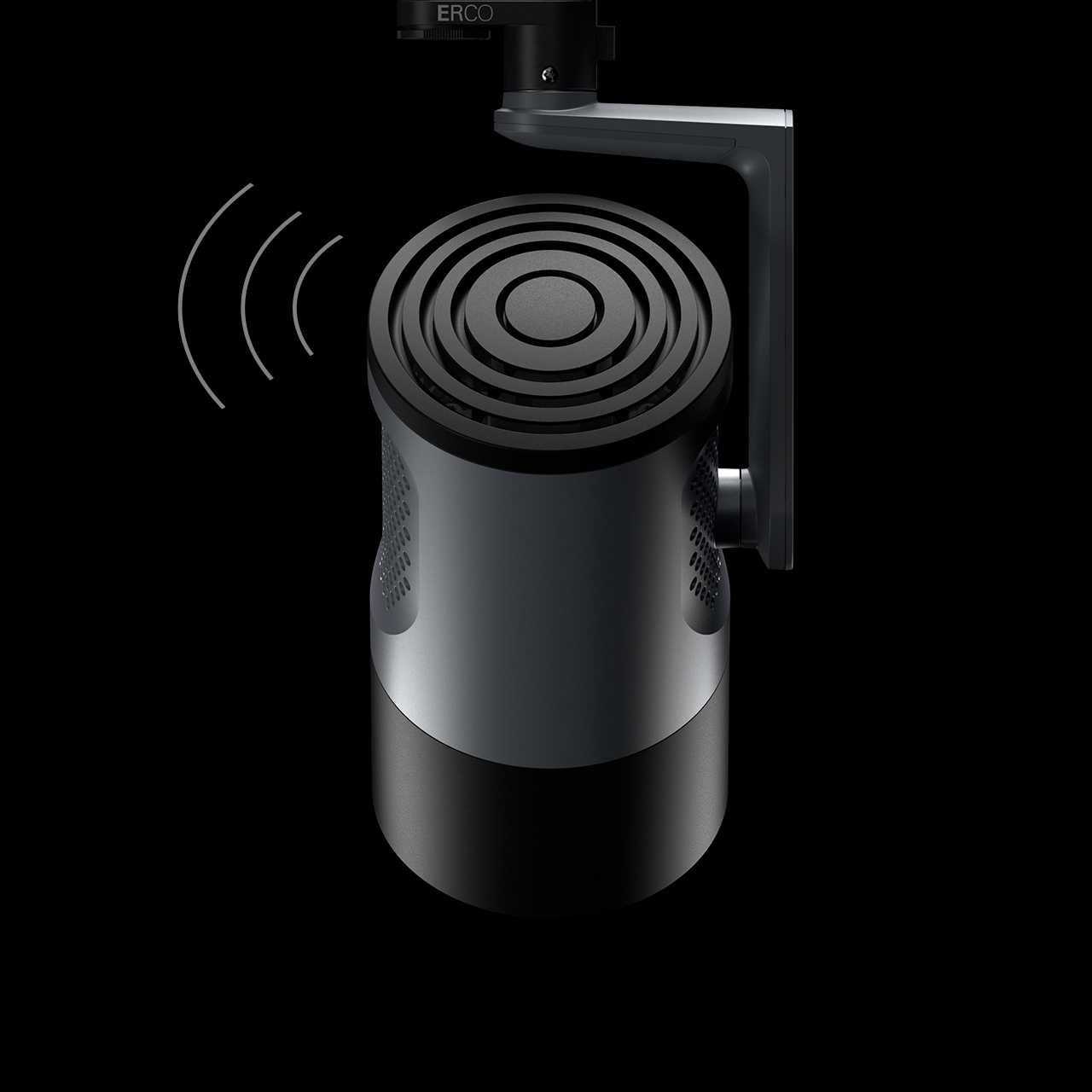

Casambi Bluetooth

Control luminaires wirelessly via Bluetooth using a smartphone or tablet without additional hard-ware. Individual switching and dimming, setting up light scenes and integrating sensors – everything is possible with Casambi Bluetooth, including control via DALI.

0-10V via bridge

Connect your Casambi controlled luminaires to your 0-10V system using the new 0-10V Casambi bridge (accessory).

Zigbee 3.0

The wireless Zigbee radio standard is ideal for integrating into building automation systems and smart home networks. Simply control luminaires via smartphone and tablet and take advantage of the extensive control functions.

On-board Dim

Dimming via rotary control on the luminaire

Modern control options for Eclipse 120V

Eclipse 120V with modern control options

Eclipse is available in control modes Casambi Bluetooth, On-board Dim and Switchable. Other control modes are possible on request.

Further design options – with Eclipse photometric accessories

  • Diverse options for additional light distributions, adapted spectra and greater visual comfort
  • Tool-free mounting of accessories
  • Accessories are combinable: supplement your light distribution with up to 3 components
Replace the light distribution of your spotlight for another one without tools
Modulate the light distribution with lenses
Modify the light spectrum with filters
Achieve even more visual comfort with antiglare elements

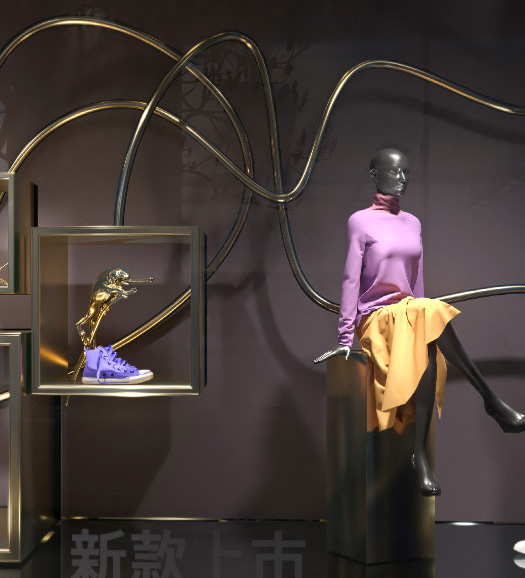

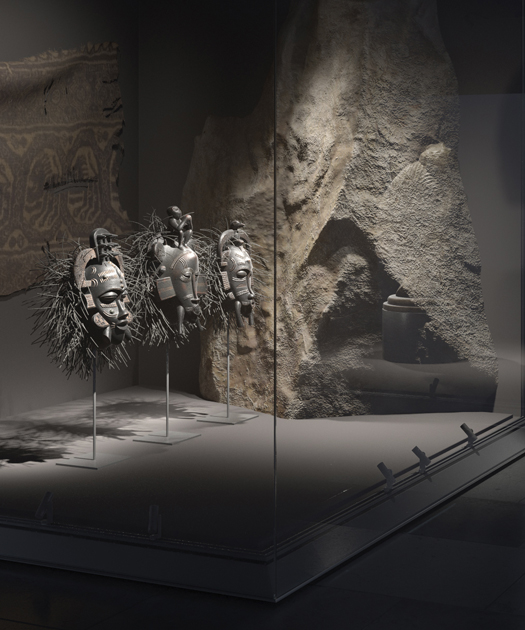

Eclipse in the application

Whether as a tunable white solution in museums, as a miniaturised spotlight in display cases, as a spotlight mounted at a large height or for brilliant accenting in the premium retail sector – Eclipse consistently meets all the requirements placed on a modular spotlight system.
