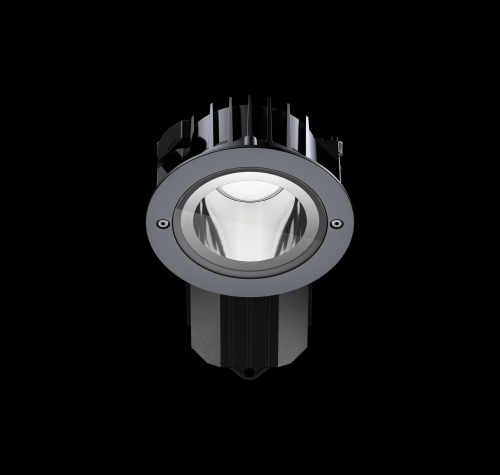

The low brightness reflector combines maximum visual comfort with an optimum light output ratio.
Quintessence recessed luminaires take the visual comfort and the light quality of downlights, wallwashers and directional luminaires into the outdoor area. The optical systems of the downlights and wallwashers achieve high uniformity with good glare control, making them superb for extensive illumination in large areas. The exceptionally wide light distribution of the downlights with a 90° beam angle and a 40° cut-off produces highly uniform and glare-free light, with luminaires that are spaced far apart. For precise accentuation, the optical system of the directional luminaires can be tilted by 20° and rotated through 360°. With a protection rating of IP65, Quintessence recessed luminaires are the efficient lighting tool for perception-orientated lighting concepts in outdoor areas with canopies and for indoor applications that call for a high degree of protection against moisture and dust.
AstraZeneca Central Operations, Södertälje. Architect: Lomar Arkitekter AB, Stockholm.
Sheikh Zayed bin Sultan Al Nahyan Mosque, Abu Dhabi. Architect: Yusef Abdelki (design), Halcrow, Dubai Office (implementation). Interior design: Spatium Architects, Milan. Lighting design: Speirs and Major Associates, Edinburgh.
Lightcast recessed luminaires with LEDs are suitable for energy-efficient lighting concepts in the outdoor area, particularly when used as lens wallwashers.
Crescent House, Winterbrook (Wiltshire). Architect: Ken Shuttleworth, London. Lighting design: Claude R. Engle, Chevy Chase.
Ciudad Real Airport, Ciudad Real. Architecture: Bernalte & Leòn Asociados, Ciudad Real. Photography: Thomas Mayer, Neuss.
Hotel Santa Marta, Girona/Lloret de Mar. Architect: Carles Sobirà, Lloret de Mar.
Oseana Art & Culture Center, Os. Architecture: Grieg Arkitekter, Bergen. Lighting design: Multiconsult AS. Photography: Thomas Mayer, Neuss.
With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Quintessence even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:
High-power LEDs: 3000K CRI 97 or 2700K, 3500K, 4000K with CRI 92
Reflector: coated matt gold, matt silver or matt champagne
Do you have further requirements with the product?
Please contact the consultant team in the following ERCO office:
Narrow beam, rotationally symmetrical light distribution for accent lighting.
2W - 18W
210lm - 2475lm
Quintessence directional luminaires accentuate artwork, products and architectural details effectively. The ideal angle of tilt (α) for this is around 20°. The object is modelled without distorting the effect as a result of excessive shadowing. It also prevents shadows cast by the observer.
