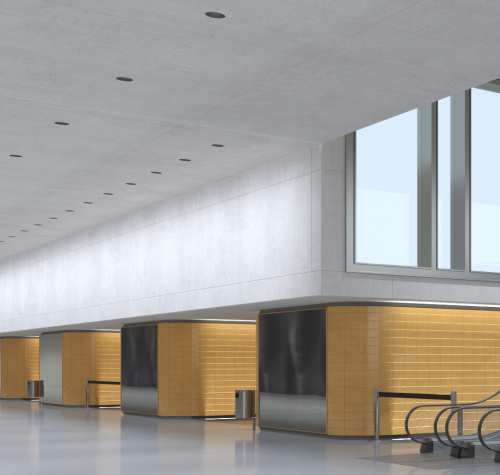

Atrium double focus. Sophisticated light for high rooms

The lighting tool for perfectly glare-free light from the ceiling

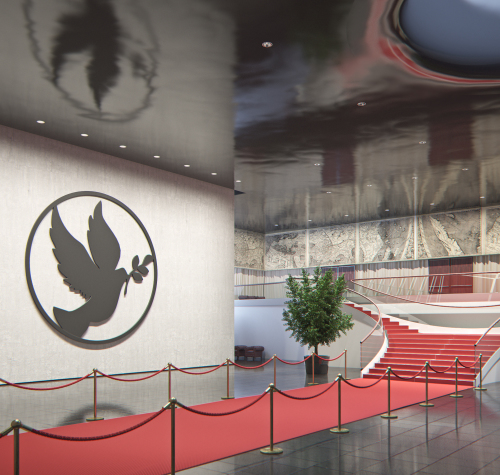

Atrium double focus in the application

Individualise Atrium double focus for your use case

With our “ERCO individual” service we offer you extensive options for the individualisation of series products as well as support in the development of sophisticated special luminaires. In order to match Atrium double focus even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

  • Anti-glare cone: coated matt gold, matt silver or matt champagne
  • Connection: 3- or 5-pole plug with connection cable (Wago or Wieland)
  • Mounting ring: 10,000 further colours
  • Ceiling channel system

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Product features in detail

1

2

3

4

5

6

1

ERCO Spherolit lens

  • Light distributions: flood, wide flood or wallwash

2

ERCO LED-module

  • High-power LEDs: warm white (2700K or 3000K) or neutral white (3500K or 4000K)
  • Collimating lens made of optical polymer

3

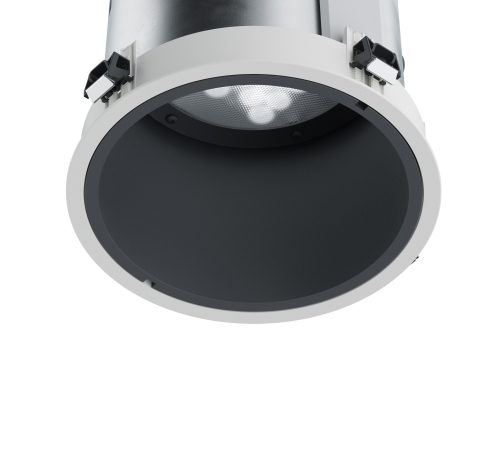

Anti-glare cone

  • Optical cut-off 40°
  • Black lacquered

or

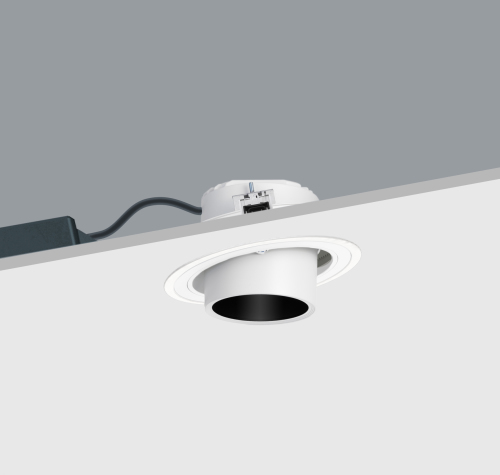

Anti-glare ring (double-focus for inclined ceilings)

  • Cast aluminium or polymer, external white, internal black

4

Mounting ring

  • Covered mounting detail
  • Fixing for ceiling thicknesses of 1-25mm (size 3-4) or 1-30mm (size 5-10)
  • Polymer, white
  • For flush mounting: mounting ring to be ordered separately, fixing for ceiling thicknesses of 12.5–25mm

5

Housing

  • Cast aluminium, designed as heat sink
  • Rotatable through 360°
  • For inclined ceilings: 0°-30° tilt. Lockable angles of tilt and rotation

6

Control gear

  • Switchable, phase dimmable, DALI dimmable or Casambi Bluetooth
  • Phase dimmable version: Dimming with external dimmers possible (trailing edge)

Atrium double focus: Light effect and planning aid

220V-240V/50Hz-60Hz

Lighting tool

Light distribution

Ambient lighting produced by wide beam light distribution.
